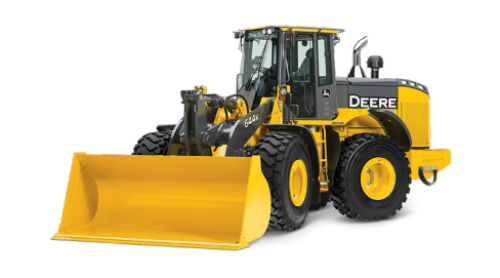

John Deere 644K

John Deere 644K for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

3.0 - 4.75 cu. yd. Medium Loaders


  • Final Tier 4 emission-certified engine
  • PowerShift™ transmission
  • Z-Bar, High-Lift, and Powerllel™ configurations
Manufacturer John Deere
Model 644 K Tier 4 Final
Engine Manufacturer  John Deere
Engine Model  Powertech PSX 6090
Emission Rating  Tier 4
Displacement, ltr (Inches³)  9 (548)
Rated Speed, rpm  1700
Engine Output - Net, kW (hp)  173 (232)
Torque, Nm (lbf / ft)  1062 (783)
Torque Rise, %  56
Transmission Type  Powershift
Front Differential Type  Locking
Rear Differential Type  Open
Tire size - Standard  23.5 R25
Service Brake - Type  Wet Disc
Service Brake - Location  Axle Inboard
Service Brake - Actuation  Hydraulic
Parking Brake - Type  Wet Multi Disc - Transmission
Height - Over Cab, mm (ft/in)  3430 (11 ft 3 in)
Wheelbase, mm (ft/in)  3260 (10 ft 8 in)
Length - Including Bucket, mm (ft/in)  8300 (27 ft 3 in)
Ground clearance, mm (inches)  461 (18.1)
Width Over tires - Std   mm, mm (ft/in)  2875 (9 ft 5 in)
Height - Pivot Pin, mm (ft/in)  4120 (13 ft 6 in)
Reach - At 2130mm 45° Dump, mm (ft/in)  1610 (5 ft 3 in)
Turning Circle - Maximum, mm (ft/in)  13280 (43 ft 7 in)
Fuel Tank, ltr (gallons (US))  397 (105)
Hydraulic Tank, ltr (gallons (US))  105.2 (6.95)
Axle - Front, ltr (gallons (US))  22 (5.75)
Axle - Rear, ltr (gallons (US))  22 (5.75)
Transmission, ltr (gallons (US))  23 (6)
Heaped Capacity, m³ (yd³)  3.2 (4.25)
Bucket Capacity - Smallest, m³ (yd³)  3.1 (4)
Largest bucket capacity, m³ (yd³)  3.2 (4.25)
Breakout - Bucket , kgf (lbf)  15378 (33903)
Ride Control System  Optional
System Voltage, V  24
Alternator Output, Amp  130
Pump Type  Piston
Pump Flow, lt/min (gallons (US) / min)  297 (78)
System Pressure, bar (PSI)  251.66 (3650)
Operating Weight, kg (lbs)  18682 (41188)
Dump Height   mm, mm (ft/in)  2910 (9 ft 7 in)
Reach at Full Height   mm, mm (ft/in)  1060 (3 ft 6 in)
Tipping Load - Straight   kg, kg (lbs)  14771 (32565)
