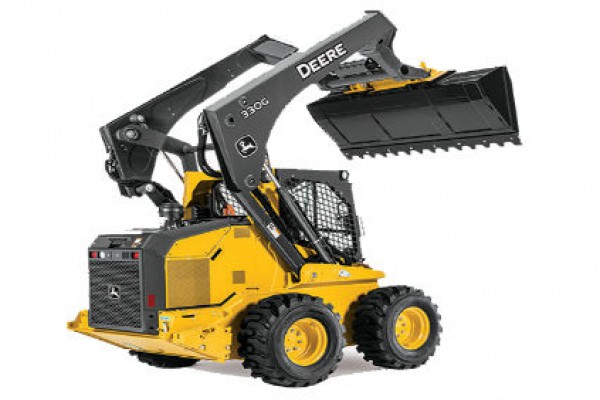

John Deere 330G

Double tap to zoom



Features

  • Final Tier 4/EU Stage IV engine
  • 40 percent more breakout force
  • Increased auxiliary hydraulic flow
  • Automatic shutdown system

Specifications

Manufacturer John Deere
Model 330 G Tier 4 Final
DESCRIPTION
Lift Geometry  Vertical
Fleet Management  Yes
Precision Guidance  No
Proximity Guidance  No
DRIVELINE
Engine Manufacturer  Yanmar
Engine Model  4TNV94FHT
Emission Rating  Tier 4
Aspiration  Turbo. Intercooled
Displacement, ltr (Inches³)  3.1 (186.3)
Rated Engine Speed, rpm  2500
SAE Net Power, kW (hp)  66 (88.5)
SAE Gross Power, kW (hp)  68 (91.2)
Max. Gross Torque, Nm (lbf / ft)  382 (281.8)
Drive Chain Rating [ANSI]  100 - HD
Tire size - Standard  14 x 17.5 - 12PR Extra Wall
DIMENSIONS
Length - No Bucket, mm (inches)  3100 (122)
Length - With Bucket, mm (inches)  3710 (146)
Width - No Bucket, mm (inches)  1980 (78)
Overall Height, mm (inches)  2190 (86.3)
Ground Clearance, mm (inches)  250 (9.7)
Wheelbase, mm (inches)  1270 (49.9)
Rear Departure Angle, °  29
Height to Hinge Pin   mm   mm, mm (inches)  3350 (132)
Dump Angle, °  48
Dump Height - Maximum, mm (inches)  2690 (106.1)
Reach - Max Dump Height, mm (inches)  710 (28)
Rollback - Ground Level, °  35
CAPACITIES
Fuel Tank, ltr (gallons (US))  96.5 (25.5)
PERFORMANCE
Rated Operating Capacity - Optional Counterweight, kg (lbs)  1430 (3150)
Rated Operating Capacity, kg (lbs)  1362 (3000)
Tipping Capacity (SAE), kg (lbs)  2724 (6000)
Axle Torque - Maximum, Nm (lbf / ft)  8480 (6235)
Speed - Maximum, kph (mph)  19.3 (12)
Breakout - Lift, kN (lbf)  31.1 (7000)
Breakout - Bucket, kN (lbf)  41.5 (9350)
Hydraulic Power   kW   kW, kW (hp)  31.402 (42.1)
Hydraulic Power - Option   kW   kW, kW (hp)  54.168 (72.6)
Pump Output, lt/min (gallons (US) / min)  80 (23.5)
Pump Flow - Option, lt/min (gallons (US) / min)  138 (36.5)
System Pressure, bar (PSI)  237.87 (3450)
WEIGHTS
Operating Weight, kg (lbs)  4495 (9900)
