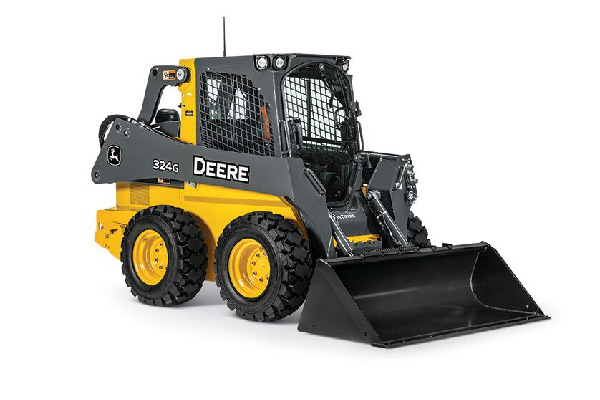

John Deere 324G
Double tap to zoom
- Features an EPA Final Tier 4 (FT4)/Stage IV engine that is simple, fully integrated, and fully supported to deliver industry-leading fuel efficiency and uptime.
Cab & Controls
- Easy-to-operate controls maximize an operator’s skills, for more everyday productivity.
- Spacious, comfortable cab is even more tightly sealed to keep out noise and dust. Available options include a four-season cab, Bluetooth® radio, and heated seats.
- Excellent all-around visibility has been further enhanced with customer-inspired side lighting and rearview camera options.
- Industry-leading bucket breakout forces and auxiliary flow
- The 324G’s height to hinge pin is 10 ft. 6 in. to easily load high-sidewall dump trucks, feed mixers, and hoppers.
- Easy Maintenance: Cab foot-well area can be washed out in a matter of minutes. Glove-friendly removable side windows make cleaning easier.
- Optional JDLink™ provides machine data and health alerts to help you decrease costly downtime.
|Emission Rating||Tier 4|
|Displacement, ltr (Inches³)||3.3 (203)|
|Rated Engine Speed, rpm||2500|
|SAE Net Power, kW (hp)||52.5 (70)|
|SAE Gross Power, kW (hp)||54.8 (74)|
|Max. Gross Torque, Nm (lbf / ft)||280 (207)|
|Drive Chain Rating [ANSI]||80 - HD|
|Tire size - Standard||12 x 16.5 - 12PR SKS|
|Length - No Bucket, mm (inches)||2850 (112.3)|
|Length - With Bucket, mm (inches)||3460 (136.3)|
|Width - No Bucket, mm (inches)||1700 (67)|
|Overall Height, mm (inches)||2060 (81.1)|
|Ground Clearance, mm (inches)||240 (9.3)|
|Wheelbase, mm (inches)||1120 (44.2)|
|Rear Departure Angle, °||28|
|Height to Hinge Pin, mm (inches)||3200 (126)|
|Dump Angle, °||41|
|Dump Height - Maximum, mm (inches)||2590 (102.1)|
|Reach - Max Dump Height, mm (inches)||760 (29.9)|
|Rollback - Ground Level, °||34|
|Fuel Tank, ltr (gallons (US))||79 (21)|
|Rated Operating Capacity - Optional Counterweight, kg (lbs)||1294 (2850)|
|Rated Operating Capacity, kg (lbs)||1221 (2690)|
|Tipping Capacity (SAE), kg (lbs)||2443 (5380)|
|Axle Torque - Maximum, Nm (lbf / ft)||6771 (4994)|
|Speed - Maximum, kph (mph)||11.1 (6.9)|
|Speed - Maximum Option, kph (mph)||17.9 (11.1)|
|Breakout - Lift, kN (lbf)||23.3 (5250)|
|Breakout - Bucket, kN (lbf)||38.9 (8750)|
|Hydraulic Power, kW (hp)||31.009 (41.5)|
|Hydraulic Power - Option, kW (hp)||47.103 (63.1)|
|Pump Output, lt/min (gallons (US) / min)||79 (21)|
|Pump Flow - Option, lt/min (gallons (US) / min)||120 (32)|
|System Pressure, bar (PSI)||237.87 (3450)|
|Operating Weight, kg (lbs)||3496 (7700)|
