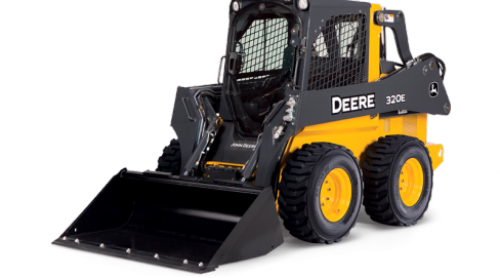

John Deere 320E

John Deere 320E for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Skid Steers



Final Tier 4-emission certified engine
Enhanced lift height to hinge pin
Improved reach at truck beds
Connect-under-pressure auxiliary couplers



Manufacturer John Deere
Model 320 E Tier 4 Final
Description
Lift Geometry  Vertical
DRIVELINE
Engine Manufacturer  Yanmar
Engine Model  4TNV98C
Emission Rating  Tier 4
Aspiration  Naturally Aspirated
Displacement, ltr (Inches³)  3.3 (201)
Rated Engine Speed, rpm  2500
SAE Net Power, kW (hp)  49.4 (66)
SAE Gross Power, kW (hp)  51.7 (69)
Max. Gross Torque, Nm (lbf / ft)  241 (178) @ 1625 rpm
Drive Chain Rating [ANSI]  80 - HD
Tire size - Standard  12 x 16.5 - 8PR SKS
DIMENSIONS
Length - No Bucket, mm (inches)  2850 (112)
Length - With Bucket, mm (inches)  3470 (136.8)
Width - No Bucket, mm (inches)  1760 (69.2)
Overall Height, mm (inches)  2020 (79.4)
Ground Clearance, mm (inches)  220 (8.5)
Wheelbase, mm (inches)  1130 (44.3)
Rear Departure Angle, Degrees  28
Height - Bucket Pivot, mm (inches)  3090 (121.5)
Dump Angle, Degrees  43
Dump Height - Maximum, mm (inches)  2460 (96.9)
Reach - Max Dump Height, mm (inches)  740 (29)
Rollback - Ground Level, Degrees  33
Capacities
Fuel Tank, ltr (gallons (US))  76 (20)
Performance
Rated Operating Capacity - Optional Counterweight, kg (lbs)  1067 (2350)
Rated Operating Capacity, kg (lbs)  994 (2190)
Tipping Capacity (SAE), kg (lbs)  1989 (4380)
Axle Torque - Maximum, Nm (lbf / ft)  6771 (4994)
Speed - Maximum, kph (mph)  11.1 (6.9)
Speed - Maximum Option, kph (mph)  17.9 (11.1) - 2 Speed Option
Breakout - Lift, kN (lbf)  15.5 (3500)
Breakout - Bucket, kN (lbf)  26.6 (6000)
Hydraulic Power, kW (hp)  28.102 (37.6)
Hydraulic Power - Option, kW (hp)  39.196 (52.5) - HF Option
Pump Output, lt/min (gallons (US) / min)  76 (20)
Pump Flow - Option, lt/min (gallons (US) / min)  106 (28) - HF Option
System Pressure, bar (PSI)  224.08 (3250)
Weights
Operating Weight, kg (lbs)  3246 (7150)
