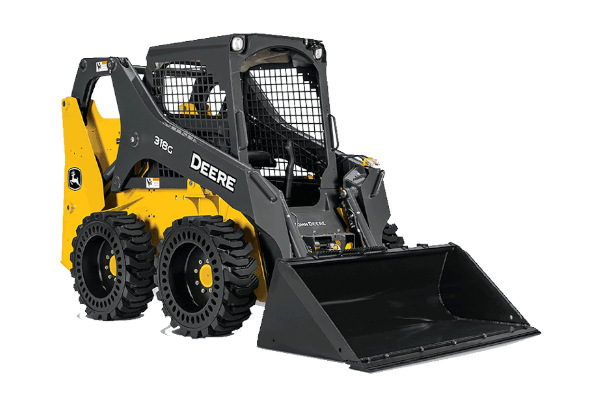

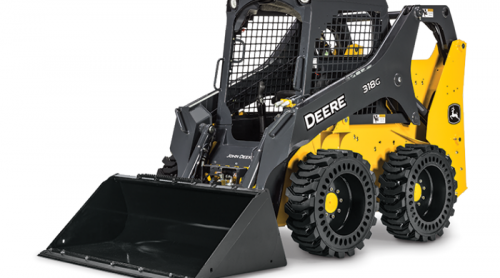

John Deere 318G

318G for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Double tap to zoom



Features

Vertical Lift Boom

  • The vertical-lift boom offers more lift height and reach at the top of the lift path, for more stability and truck-loading ability.
  • The low center of gravity and superior balance provide exceptional agility and stability on slopes.



Engine

  • Final Tier 4 (FT4)/EU Stage IV diesel engine packs plenty of power and torque.
  • Large coolers provide increased heat rejection for superior performance in severe, high-load conditions. Engine-mounted, belt-driven cooling fan delivers efficient, reliable performance.



Stability

  • The low center of gravity and superior balance provide exceptional agility and stability on slopes.



Cab & Controls

  • Larger entryways with swing-out doors make it easier to get in, get comfortable, and get on with it. Inside, there’s more productivity-enhancing foot- and legroom.
  • Electrohydraulic (EH) joysticks are standard.



Uptime

  • Generous tank capacity and fuel-efficient diesels enable day-long operation, letting you accomplish more between fill-ups.
  • Swing open the rear door and tilt up the hood for convenient ground-level access to dipsticks, fuel- and fluid-filler necks, and filters.

Specifications

DESCRIPTION

Lift Geometry Vertical

DRIVELINE

Engine Manufacturer Yanmar
Engine Model 4TNV86CHT
Emission Rating Tier 4
Aspiration Turbo
Displacement, ltr (Inches) 2.1 (128)
Rated Engine Speed, rpm 2600
SAE Net Power, kW (hp) 45.6 (61)
SAE Gross Power, kW (hp) 48.5 (65)
Max. Gross Torque, Nm (lbf / ft) 207 (153)
Drive Chain Rating [ANSI] 80 - HD
Tire size - Standard 10 x 16.5

DIMENSIONS

Length - No Bucket, mm (inches) 2630 (103)
Length - With Bucket, mm (inches) 3240 (127.6)
Width - No Bucket, mm (inches) 1600 (62.9)
Overall Height, mm (inches) 1960 (77.2)
Ground Clearance, mm (inches) 180 (7)
Wheelbase, mm (inches) 1050 (41.5)
Rear Departure Angle, 22.3
Height to Hinge Pin, mm (inches) 3050 (120)
Dump Angle, 42
Dump Height - Maximum, mm (inches) 2400 (94.3)
Reach - Max Dump Height, mm (inches) 860 (34)
Rollback - Ground Level, 30

CAPACITIES

Fuel Tank, ltr (gallons (US)) 71 (19)

PERFORMANCE

Rated Operating Capacity - Optional Counterweight, kg (lbs) 951 (2095)
Rated Operating Capacity, kg (lbs) 883 (1945)
Tipping Capacity (SAE), kg (lbs) 1766 (3890)
Axle Torque - Maximum, Nm (lbf / ft) 6459 (4764)
Speed - Maximum, kph (mph) 11.1 (6.9)
Speed - Maximum Option, kph (mph) 16.3 (10.1)
Breakout - Lift, kN (lbf) 22.2 (5000)
Breakout - Bucket, kN (lbf) 26.6 (6000)
Hydraulic Power, kW (hp) 23.159 (31)
Pump Output, lt/min (gallons (US) / min) 59 (16)
System Pressure, bar (PSI) 237.87 (3450)

WEIGHTS

Operating Weight, kg (lbs) 2940 (6475)
