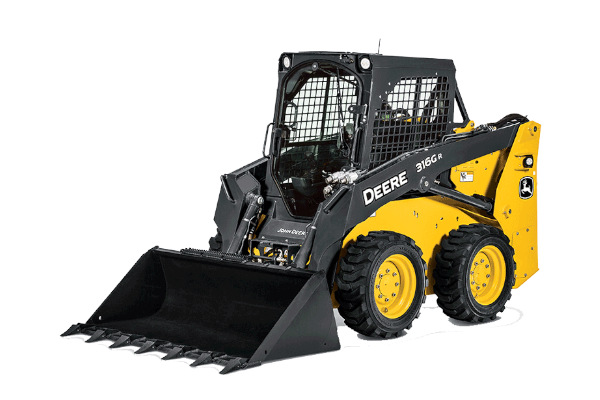

John Deere 316GR

316GR for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Double tap to zoom



Features

Radial-Lift Boom

  • The radial-lift boom offers more reach at mid-range lift heights, good for digging, grading, and backfilling. It provides powerful digging performance at a competitive price.
  • The low center of gravity and superior balance provide exceptional agility and stability on slopes.



Engine

  • Final Tier 4 (FT4)/EU Stage IV diesel engine packs plenty of power and torque.
  • Large coolers provide increased heat rejection for superior performance in severe, high-load conditions. Engine-mounted, belt-driven cooling fan delivers efficient, reliable performance.



Mobility

  • With weights from only 5,995 to 6,315 lb., these compacts are easy to trailer behind a pickup truck.
  • Without a bucket, the 316GR slims down to 1600 mm (62.9 in.) to fit through narrow openings.



Cab & Controls

  • Larger entryways with swing-out doors make it easier to get in, get comfortable, and get on with it. Inside, there’s more productivity-enhancing foot- and legroom.
  • Low-effort foot pedals are standard on skid steers; manual hand controls are available.



Uptime

  • Generous tank capacity and fuel-efficient diesels enable day-long operation, letting you accomplish more between fill-ups.
  • Rear door enables easy, ground-level access to daily service checkpoints and cooling system components.

Specifications

DESCRIPTION

Lift Geometry Radial

DRIVELINE

Engine Manufacturer Yanmar
Engine Model 4TNV86CHT
Emission Rating Tier 4
Aspiration Turbo
Displacement, ltr (Inches) 2.1 (128)
Rated Engine Speed, rpm 2600
SAE Net Power, kW (hp) 45.6 (61)
SAE Gross Power, kW (hp) 48.5 (65)
Max. Gross Torque, Nm (lbf / ft) 207 (153)
Drive Chain Rating [ANSI] 80 - HD
Tire size - Standard 10 x 16.5

DIMENSIONS

Length - No Bucket, mm (inches) 2630 (103)
Length - With Bucket, mm (inches) 3240 (127.6)
Width - No Bucket, mm (inches) 1600 (62.9)
Overall Height, mm (inches) 1960 (77.2)
Ground Clearance, mm (inches) 180 (7)
Wheelbase, mm (inches) 1050 (41.5)
Rear Departure Angle, 22.3
Height to Hinge Pin, mm (inches) 2920 (115.1)
Dump Angle, 45
Dump Height - Maximum, mm (inches) 2250 (88.6)
Reach - Max Dump Height, mm (inches) 400 (15.8)
Rollback - Ground Level, 30

CAPACITIES

Fuel Tank, ltr (gallons (US)) 71 (19)

PERFORMANCE

Rated Operating Capacity - Optional Counterweight, kg (lbs) 863 (1900)
Rated Operating Capacity, kg (lbs) 795 (1750)
Tipping Capacity (SAE), kg (lbs) 1589 (3500)
Axle Torque - Maximum, Nm (lbf / ft) 6459 (4764)
Speed - Maximum, kph (mph) 11 (6.9)
Speed - Maximum Option, kph (mph) 16.3 (10.1)
Breakout - Lift, kN (lbf) 21.1 (4750)
Breakout - Bucket, kN (lbf) 17.7 (4000)
Hydraulic Power, kW (hp) 23.159 (31)
Pump Output, lt/min (gallons (US) / min) 59 (16)
System Pressure, bar (PSI) 237.87 (3450)

WEIGHTS

Operating Weight, kg (lbs) 2894 (6375)
