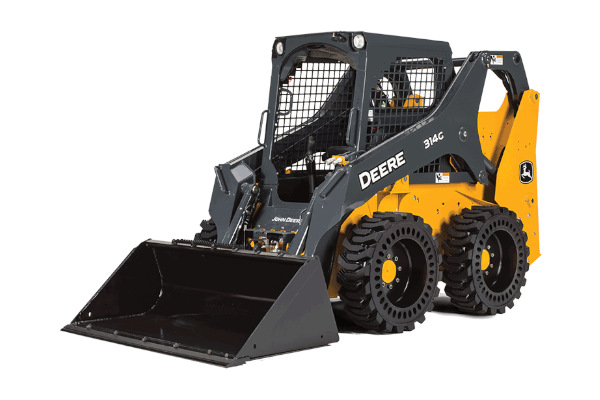

John Deere 314G
Double tap to zoom
Vertical Lift Boom
- The vertical-lift boom offers more lift height and reach at the top of the lift path, for more stability and truck-loading ability.
- The low center of gravity and superior balance provide exceptional agility and stability on slopes.
- Final Tier 4 (FT4)/EU Stage IV diesel engine packs plenty of power and torque.
- Large coolers provide increased heat rejection for superior performance in severe, high-load conditions. Engine-mounted, belt-driven cooling fan delivers efficient, reliable performance.
- With weights from only 5,995 to 6,315 lb., these compacts are easy to trailer behind a pickup truck.
- Without a bucket, the 314GR slims down to 1600 mm (62.9 in.) to fit through narrow openings.
Cab & Controls
- Larger entryways with swing-out doors make it easier to get in, get comfortable, and get on with it. Inside, there’s more productivity-enhancing foot- and legroom.
- Low-effort foot pedals are standard on skid steers; manual hand controls are available.
- Generous tank capacity and fuel-efficient diesels enable daylong operation, letting you accomplish more between fill-ups.
|Emission Rating||Tier 4|
|Displacement, ltr (Inches)||2.1 (128)|
|Rated Engine Speed, rpm||2600|
|SAE Net Power, kW (hp)||35.8 (48)|
|SAE Gross Power, kW (hp)||37.8 (51)|
|Max. Gross Torque, Nm (lbf / ft)||168 (124)|
|Drive Chain Rating [ANSI]||80 - HD|
|Tire size - Standard||10 x 16.5|
|Length - No Bucket, mm (inches)||2630 (103)|
|Length - With Bucket, mm (inches)||3240 (127.6)|
|Width - No Bucket, mm (inches)||1600 (62.9)|
|Overall Height, mm (inches)||1960 (77.2)|
|Ground Clearance, mm (inches)||180 (7)|
|Wheelbase, mm (inches)||1050 (41.5)|
|Rear Departure Angle,||22.3|
|Height to Hinge Pin, mm (inches)||3050 (120)|
|Dump Height - Maximum, mm (inches)||2400 (94.3)|
|Reach - Max Dump Height, mm (inches)||860 (34)|
|Rollback - Ground Level,||30|
|Fuel Tank, ltr (gallons (US))||71 (19)|
|Rated Operating Capacity - Optional Counterweight, kg (lbs)||863 (1900)|
|Rated Operating Capacity, kg (lbs)||799 (1760)|
|Tipping Capacity (SAE), kg (lbs)||1598 (3520)|
|Axle Torque - Maximum, Nm (lbf / ft)||4664 (3440)|
|Speed - Maximum, kph (mph)||10.8 (6.7)|
|Breakout - Lift, kN (lbf)||20 (4500)|
|Breakout - Bucket, kN (lbf)||22.2 (5000)|
|Hydraulic Power, kW (hp)||21.816 (29.2)|
|Pump Output, lt/min (gallons (US) / min)||59 (16)|
|System Pressure, bar (PSI)||224.08 (3250)|
|Operating Weight, kg (lbs)||2867 (6315)|
