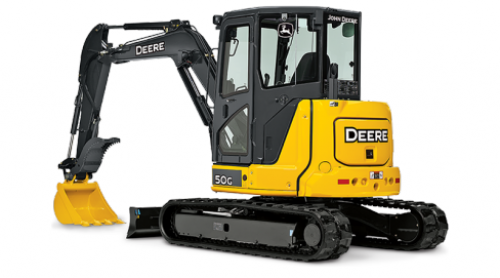

John Deere 50G
John Deere 50G for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.
Compact Excavators
- Final Tier 4 emission-certified engine
- Spacious operator station with wider entryway for easier entrance/exit
- Multifunction monitor displays vital machine info
- Service door improves access to new side-by-side cooler cores
| Manufacturer | John Deere |
| Model | 50G Tier 4 Final |
| DRIVELINE | |
| Emission Rating | Tier 4 |
| Engine Manufacturer | Yanmar |
| Number Of Cylinders (Per Engine) | 4 |
| Displacement, ltr (Inches³) | 2.19 (134) |
| Rated speed, rpm | 2400 |
| Engine Output - Net, kW (hp) | 26.8 (35.9) |
| Number Of Carrier Rollers - Each Side | 1 |
| Number Of Track Rollers - Each Side | 4 |
| Track Shoe Width, mm (inches) | 400 (16) |
| DIMENSIONS | |
| Transport Length, mm (ft/in) | 5470 (17 ft 11 in) |
| Transport Height - Maximum, mm (ft/in) | 2530 (8 ft 4 in) |
| Overall Width, mm (ft/in) | 2000 (6 ft 7 in) |
| Track Length On Ground, mm (ft/in) | 2000 (6 ft 7 in) |
| Undercarriage Overall Length, mm (ft/in) | 2500 (8 ft 2 in) |
| Tailswing Radius, mm (ft/in) | 1000 (3 ft 3 in) |
| Ground Clearance, mm (inches) | 340 (13) |
| Dozer Blade Height, mm (inches) | 375 (15) |
| Dozer Blade Width, mm (ft/in) | 2000 (6 ft 7 in) |
| Width over standard tracks, mm (ft/in) | 2000 (6 ft 7 in) |
| Track Gauge, mm (ft/in) | 1600 (5 ft 3 in) |
| Digging Reach - Mono Boom, mm (ft/in) | 5960 (19 ft 7 in) |
| Dig Height - Mono Boom, mm (ft/in) | 5750 (18 ft 10 in) |
| Dump Height - Mono Boom, mm (ft/in) | 4070 (13 ft 4 in) |
| Dig Depth - Mono Boom, mm (ft/in) | 3530 (11 ft 7 in) |
| Standard Dipper For Lifting, mm (ft/in) | 1380 (4 ft 6 in) |
| Capacities | |
| Voltage, V | 12 |
| Number Of Batteries | 1 |
| Performance | |
| Slew Speed, rpm | 9 |
| Travel Speed - High, kph (mph) | 4.2 (2.6) |
| Dipper Tearout, kN (lbf) | 24 (5401) |
| Bucket Breakout, kN (lbf) | 36.8 (8267) |
| Main Pumps - Maximum Flow, lt/min (gallons (US) / min) | 120 (31.7) |
| Weights | |
| Operating Weight, kg (lbs) | 4920 (10847) |
