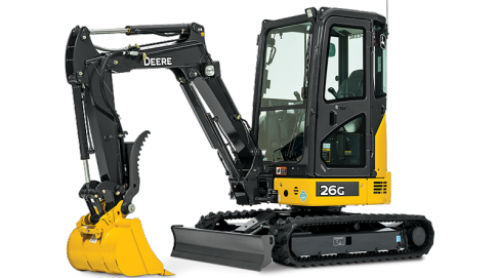

John Deere 26G
Double tap to zoom
- Reduced-tail-swing configuration, independent-swing boom, and 360-deg. rotation allow the 26G to work with ease in tight spaces and around obstacles.
- Rubber tracks’ unique steel cores resist cracking. Large-diameter drive sprockets and track idlers further increase undercarriage durability.
Ease of Control
- Go from backhoe- to excavator-style controls with just a twist of your wrist. Control pattern selector valve is conveniently located in a compartment beneath the seat and includes a sight glass that displays the selected pattern.
- High-torque fuel-efficient diesels meet EPA Final Tier 4/EU Stage IV emission standards without after treatment devices — reducing maintenance and expense.
- Heavy-duty side-by-side coolers enhance efficiency in high-ambient or -altitude working conditions.
- Nearly unobstructed visibility provides a commanding view of the surrounding jobsite.
- No tools are needed to access daily or periodic checkpoints. Hinged steel doors swing open wide, for quick and easy service.
|Number Of Cylinders (Per Engine)||3|
|Displacement, ltr (Inches³)||1.267 (77)|
|Rated speed, rpm||2500|
|Engine Output - Net, kW (hp)||14.9 (20)|
|Track Shoe Width, mm (inches)||300 (12)|
|Transport Length Mono Boom, mm (ft/in)||4180 (13 ft 9 in)|
|Transport Height - Maximum, mm (ft/in)||2430 (8 ft )|
|Overall Undercarriage Width, mm (ft/in)||1500 (4 ft 11 in)|
|Track Length On Ground, mm (ft/in)||1530 (5 ft )|
|Undercarriage Overall Length, mm (ft/in)||1960 (6 ft 5 in)|
|Tailswing Radius, mm (ft/in)||800 (2 ft 7 in)|
|Ground Clearance, mm (inches)||300 (12)|
|Dozer Blade Height, mm (inches)||320 (12.6)|
|Dozer Blade Width, mm (ft/in)||1500 (4 ft 11 in)|
|Width over standard tracks, mm (ft/in)||1500 (4 ft 11 in)|
|Track Gauge, mm (ft/in)||1200 (3 ft 11 in)|
|Digging Reach - Mono Boom, mm (ft/in)||4630 (15 ft 2 in)|
|Dig Height - Mono Boom, mm (ft/in)||4280 (14 ft 1 in)|
|Dump Height - Mono Boom, mm (ft/in)||3040 (10 ft )|
|Dig Depth - Mono Boom, mm (ft/in)||2590 (8 ft 6 in)|
|Standard Dipper, mm (ft/in)||1170 (3 ft 10 in)|
|Fuel Tank, ltr (gallons (US))||34.07 (9)|
|Hydraulic Tank, ltr (gallons (US))||23.85 (6.3)|
|Number Of Batteries||1|
|Ground Bearing Pressure, kPa (PSI)||25.9 (3.8)|
|Slew Speed, rpm||9.1|
|Travel Speed - High, kph (mph)||4.5 (2.8)|
|Dipper Tearout, kN (lbf)||15.17 (3410)|
|Bucket Breakout, kN (lbf)||22.21 (4994)|
|Main Pumps - Maximum Flow, lt/min (gallons (US) / min)||72 (15.8)|
|Operating Weight, kg (lbs)||2770 (6110)|
