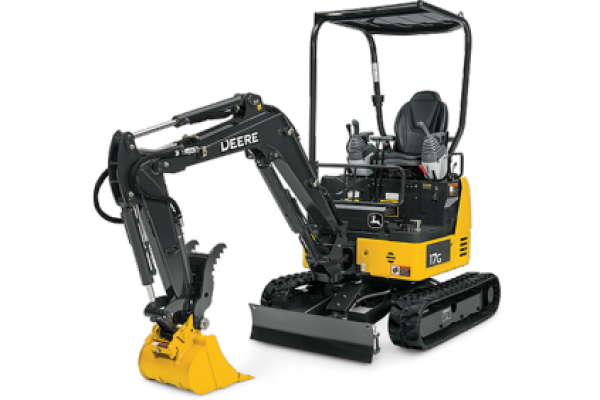

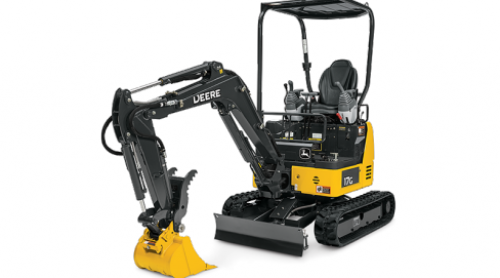

John Deere 17G

John Deere 17G for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Edinboro, Fairmount City, and Stoneboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Compact Excavators



  • Final Tier 4 emission-certified engine
  • Reduced tail swing
  • Variable-width undercarriage
  • Redesigned blade extension pins
Manufacturer John Deere
Model 17G Tier 4 Final
DRIVELINE
Emission Rating Tier 4
Engine Manufacturer Yanmar
Number Of Cylinders (Per Engine) 3
Displacement, ltr (Inches³) 0.99 (61)
Rated speed, rpm 2400
Engine Output - Net, kW (hp) 10.8 (14.5)
Track Shoe Width, mm (inches) 230 (9)
DIMENSIONS
Transport Length, mm (ft/in) 3500 (11 ft 6 in)
Overall Width, mm (ft/in) 980 (3 ft 3 in)
Track Length On Ground, mm (ft/in) 1210 (4 ft )
Undercarriage Overall Length, mm (ft/in) 1570 (5 ft 2 in)
Tailswing Radius, mm (ft/in) 680 (2 ft 3 in)
Ground Clearance, mm (inches) 165 (6)
Dozer Blade Height, mm (inches) 260 (10.2)
Digging Reach - Mono Boom, mm (ft/in) 3810 (12 ft 6 in)
Dig Height - Mono Boom, mm (ft/in) 3540 (11 ft 7 in)
Dump Height - Mono Boom, mm (ft/in) 2510 (8 ft 3 in)
Dig Depth - Mono Boom, mm (ft/in) 2190 (7 ft 2 in)
Standard Dipper For Lifting, mm (ft/in) 930 (3 ft 1 in)
Capacities
Fuel Tank, ltr (gallons (US)) 20.06 (5.3)
Hydraulic Tank, ltr (gallons (US)) 14.01 (3.7)
Voltage, V 12
Number Of Batteries 1
Performance
Ground Bearing Pressure, kPa (PSI) 26.6 (3.9)
Slew Speed, rpm 9.4
Travel Speed - High, kph (mph) 4.2 (2.6)
Dipper Tearout, kN (lbf) 8.6 (1933)
Bucket Breakout, kN (lbf) 16 (3597)
Main Pumps - Maximum Flow, lt/min (gallons (US) / min) 38.4 (10.2)
Weights
Operating Weight, kg (lbs) 1720 (3790)
