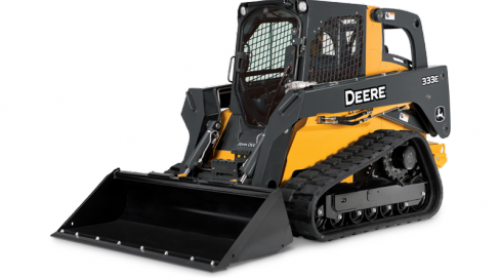

John Deere 333E / NOT AVAILABLE

John Deere 333E for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Compact Track Loaders

Not a current model



  • Interim Tier 4-emission certified engine.
  • The 333E delivers ten-percent more power than its predecessor.
  • 15-percent more fuel efficiency.
  • Programmable courtesy lighting.
  • Connect-under-pressure auxiliary couplers.
Manufacturer John Deere
Model 333E Interim Tier 4
Description
Lift Geometry  Vertical
DRIVELINE
Engine Manufacturer  Yanmar
Engine Model  4TNV94CHT
Emission Rating  Interim Tier 4
Aspiration  Turbo. intercooled
Displacement, ltr (Inches³)  3.1 (186.3)
Rated Speed, rpm  2500
Engine Output - Net, kW (hp)  72 (97)
Engine Output - Gross, kW (hp)  74.6 (100)
Torque, Nm (lbf / ft)  395 (291) @ 1700 rpm
Track Shoe Width, mm (inches)  450 (17.7)
DIMENSIONS
Length - No Bucket, mm (inches)  3050 (120)
Length - With Bucket, mm (inches)  3660 (144)
Width - No Bucket, mm (inches)  2050 (80.7)
Height - Top Of Cab, mm (inches)  2150 (84.7)
Ground Clearance, mm (inches)  260 (10.4)
Rear Departure Angle, Degrees  31
Track Gauge, mm (inches)  1600 (63)
Height - Bucket Pivot, mm (inches)  3200 (126)
Dump Angle, Degrees  45
Dump Height - Maximum, mm (inches)  2590 (101.8)
Reach - 45° Dump, mm (inches)  820 (32.2)
Rollback - Ground Level, Degrees  35
Capacities
Fuel Tank, ltr (gallons (US))  96.5 (25.5)
Performance
Rated Operating Capacity, kg (lbs)  1498 (3300)
Tipping Load, kg (lbs)  4279 (9425)
Ground Bearing Pressure, kPa (PSI)  31.1 (4.5)
Speed - Maximum, kph (mph)  12.6 (7.8)
Breakout - Lift, kN (lbf)  29.3 (6600)
Breakout - Bucket, kN (lbf)  61.7 (13875)
Hydraulic Power, kW (hp)  37.29 (50)
Hydraulic Power - Option, kW (hp)  50.64 (67.9) - HF Option
Pump Flow, lt/min (gallons (US) / min)  95 (25)
Pump Flow - Option, lt/min (gallons (US) / min)  129 (34) - HF Option
System Pressure, bar (PSI)  237.87 (3450)
Weights
Operating Weight, kg (lbs)  5357 (11800)
