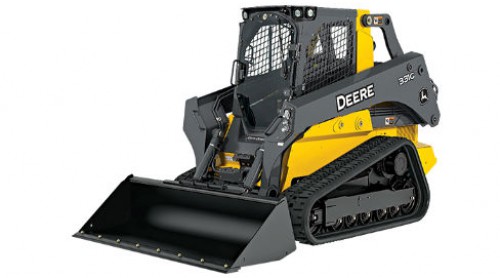

John Deere 331G

John Deere 331G for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Compact Track Loaders



  • Final Tier 4/EU Stage IV engine
  • 6.75-inch longer track frames
  • 40 percent more breakout force
  • Tri-Cool™ System Design
DESCRIPTION
Lift Geometry Vertical
DRIVELINE
Engine Manufacturer Yanmar
Engine Model 4TNV94FHT
Emission Rating Tier 4
Aspiration Turbo. intercooled
Displacement, ltr (Inches�) 3.1 (186.3)
Rated Speed, rpm 2500
Engine Output - Net, kW (hp) 66 (88.5)
Engine Output - Gross, kW (hp) 68 (91.2)
Torque, Nm (lbf / ft) 382 (281.8)
Track Shoe Width, mm (inches) 400 (15.8)
DIMENSIONS
Length - No Bucket, mm (inches) 3100 (122)
Length - With Bucket, mm (inches) 3710 (146)
Width - No Bucket, mm (inches) 2000 (78.9)
Height - Top Of Cab, mm (inches) 2200 (86.7)
Ground Clearance, mm (inches) 240 (9.4)
Rear Departure Angle, � 31
Track Gauge, mm (inches) 1600 (63.1)
Height to Hinge Pin, mm (inches) 3350 (132)
Dump Angle, � 48
Dump Height - Maximum, mm (inches) 2690 (106.1)
Rollback - Ground Level, � 35
CAPACITIES
Fuel Tank, ltr (gallons (US)) 114 (30)
PERFORMANCE
Rated Operating Capacity, kg (lbs) 1407 (3100)
Tipping Load, kg (lbs) 4021 (8857)
Ground Bearing Pressure, kPa (PSI) 38.1 (5.5)
Speed - Maximum, kph (mph) 12.6 (7.8)
Breakout - Lift, kN (lbf) 31.1 (7000)
Breakout - Bucket, kN (lbf) 41.5 (9350)
Hydraulic Power, kW (hp) 31.402 (42.1)
Hydraulic Power - Option, kW (hp) 54.168 (72.6)
Pump Flow, lt/min (gallons (US) / min) 80 (23.5)
Pump Flow - Option, lt/min (gallons (US) / min) 138 (36.5)
System Pressure, bar (PSI) 237.87 (3450)
WEIGHTS
Operating Weight, kg (lbs) 5403 (11900)
