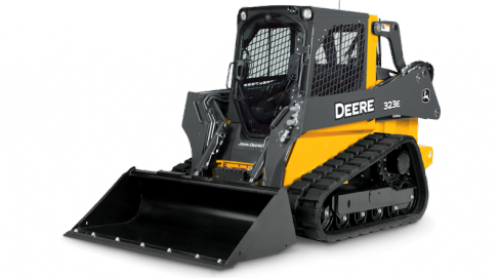

John Deere 323E / NOT AVAILABLE
John Deere 323E for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.
Compact Track LoadersNot a current model
- Final Tier 4-emission certified engine.
- The 323E delivers five-percent more power than its predecessor.
- Improved reach at truck beds.
- Programmable courtesy lighting.
- Connect-under-pressure auxiliary couplers.
|Model||323 E Tier 4 Final|
|Emission Rating||Tier 4|
|Displacement, ltr (Inches³)||3.3 (203)|
|Rated Speed, rpm||2500|
|Engine Output - Net, kW (hp)||52.5 (70)|
|Engine Output - Gross, kW (hp)||54.8 (74)|
|Torque, Nm (lbf / ft)||280 (207) @ 1800 rpm|
|Track Shoe Width, mm (inches)||320 (12.5)|
|Length - No Bucket, mm (inches)||2850 (112)|
|Length - With Bucket, mm (inches)||3470 (136.8)|
|Width - No Bucket, mm (inches)||1820 (71.8)|
|Height - Top Of Cab, mm (inches)||2050 (80.6)|
|Ground Clearance, mm (inches)||250 (9.8)|
|Rear Departure Angle, Degrees||31.4|
|Track Gauge, mm (inches)||1500 (59.2)|
|Height - Bucket Pivot, mm (inches)||3120 (122.8)|
|Dump Angle, Degrees||42|
|Dump Height - Maximum, mm (inches)||2500 (98.4)|
|Rollback - Ground Level, Degrees||32|
|Fuel Tank, ltr (gallons (US))||76 (20)|
|Rated Operating Capacity, kg (lbs)||1176 (2590)|
|Tipping Load, kg (lbs)||3360 (7400)|
|Ground Bearing Pressure, kPa (PSI)||39.3 (5.7)|
|Speed - Maximum, kph (mph)||10 (6.2)|
|Speed - Maximum Option, kph (mph)||14 (8.7)|
|Breakout - Lift, kN (lbf)||19.1 (4300)|
|Breakout - Bucket, kN (lbf)||31.1 (7000)|
|Hydraulic Power, kW (hp)||25.144 (33.7)|
|Hydraulic Power - Option, kW (hp)||35.128 (47.1) - HF Option|
|Pump Flow, lt/min (gallons (US) / min)||68 (18)|
|Pump Flow - Option, lt/min (gallons (US) / min)||95 (25) - HF Option|
|System Pressure, bar (PSI)||224.08 (3250)|
|Operating Weight, kg (lbs)||4286 (9440)|
