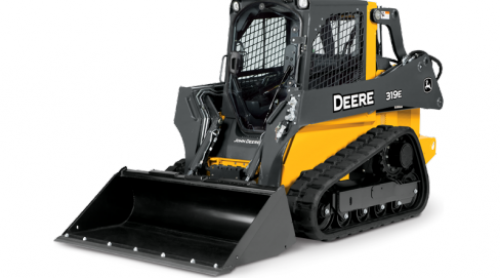

John Deere 319E / NOT AVAILABLE

John Deere 319E for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Compact Track Loaders

Not a current model


  • Final Tier 4-emission certified engine.
  • The 319E delivers five-percent more power than its predecessor.
  • Improved reach at truck beds.
  • Lower cab noise levels.
  • Connect-under-pressure auxiliary couplers.
Manufacturer John Deere
Model 319 E Tier 4 Final
Lift Geometry  Vertical
Engine Manufacturer  Yanmar
Engine Model  4TNV98C
Emission Rating  Tier 4
Aspiration  Naturally Aspirated
Displacement, ltr (Inches³)  3.3 (203)
Rated Speed, rpm  2500
Engine Output - Net, kW (hp)  49.4 (66)
Engine Output - Gross, kW (hp)  51.7 (69)
Torque, Nm (lbf / ft)  241 (178) @ 1625 rpm
Track Shoe Width, mm (inches)  320 (12.6)
Length - No Bucket, mm (inches)  2850 (112)
Length - With Bucket, mm (inches)  3470 (136.8)
Width - No Bucket, mm (inches)  1820 (71.8)
Height - Top Of Cab, mm (inches)  2050 (80.6)
Ground Clearance, mm (inches)  250 (9.8)
Rear Departure Angle, Degrees  31.4
Track Gauge, mm (inches)  1500 (59.2)
Height - Bucket Pivot, mm (inches)  3120 (122.8)
Dump Angle, Degrees  42
Dump Height - Maximum, mm (inches)  2500 (98.4)
Rollback - Ground Level, Degrees  32
Fuel Tank, ltr (gallons (US))  76 (20)
Rated Operating Capacity, kg (lbs)  976 (2150)
Tipping Load, kg (lbs)  2789 (6143)
Ground Bearing Pressure, kPa (PSI)  39.3 (5.7)
Speed - Maximum, kph (mph)  9.3 (5.8)
Breakout - Lift, kN (lbf)  15.5 (3500)
Breakout - Bucket, kN (lbf)  26.6 (6000)
Hydraulic Power, kW (hp)  21.077 (28.2)
Pump Flow, lt/min (gallons (US) / min)  57 (15)
System Pressure, bar (PSI)  224.08 (3250)
Operating Weight, kg (lbs)  4286 (9440)
