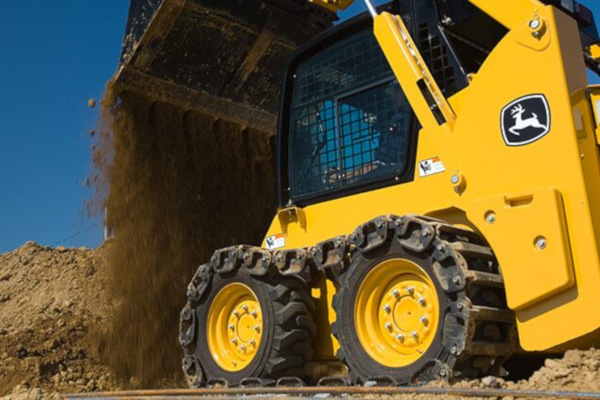

John Deere 14-Inch Steel Track

Double tap to zoom



Features

  • Worksite Pro™ steel tracks enable John Deere skid steers to operate in soft, muddy, loose conditions, while also improving traction over hard ground and gravel.
  • Design reduces ground pressure, while adding counter balance weight.
  • Tracks protect tires from damage inflicted by harsh terrain and help prolong tread life.
  • 31.7 mm (1.25 in.) heavy-duty bushings and drilled (not cored) holes increase strength.
  • Sloped link casting helps eject material that could interfere with movement.
  • Open outer side plates make tracks easy to clean and adjust.

Specifications

MODEL 14-in. Heavy-Duty (HD) Tires
Track
Pitch 254 mm (10 in.)
Weight 484 kg (1,066 lb.)
Total Number of Pads 42
Weight per Pad 12.4 kg (27.4 lb.)
Pin
Diameter 31.7 mm (1.25 in.)
Wear Length Wear Surface Area 19 mm (0.75 in.)30 mm3 (1.17 sq. in.)
Heat-Treated Yes, 55-60 RC
Installation Bolted
Field Replaceable Yes
Link Thickness 19 mm (0.75 in.)
Crossbar
Dimension (two bars) 25 x 32 mm (1 x 1.25 in.)
Height Wear Area (per pad) 33 mm (1.3 in.)691 mm3 (27.2 sq. in.)
Heat-Treated Yes
Traction Bead Tire Guide Area (per pad) 2 per pad 1523 mm3 (60 sq. in.)
Binder Provided Yes
Length Adjustment Yes
Flotation Area
Of Tires With Tracks 3903.2 cm3 (605 sq. in.)8258 cm3 (1,280 sq. in.)
Vehicle Compatibility 330G and 332G Skid Steers
