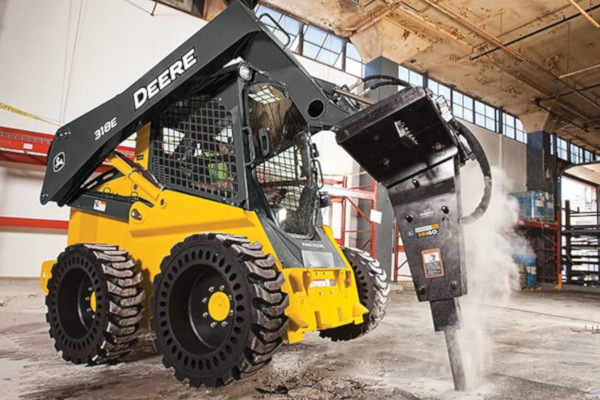

John Deere HH40C Hammer

Double tap to zoom



Features

  • These are the fastest hydraulic hammers on the market, with 30-percent fewer parts than either competitive or previous models, for simplified maintenance.
  • Redesigned to provide two or three times more blows per minute (BPM) than previous models, for increased efficiency.
  • Exclusive tool retention enables quick installation and removal using only one small screwdriver.
  • Bits* available to power your productivity include:
  • Standard moil point suitable for breaking concrete or medium-hard, non-stratified rock.
  • Optional chisel point for most concrete flatwork, walls around rebar, or breaking into a precut line.
  • Optional spade, available in two sizes, for most concrete and all earthworks in soft, non-stratified rock.
  • Optional compacting plate for single-machine prep of dirt for concrete pads and fencing.
  • Optional pyramid point used to break hard, reinforced concrete as well as sediment.

*All bits are unique to this hydraulic hammer, All older bits will not be compatible.

Specifications

Model HH40C
Weight 420 lb. (190kg)
Operating Pressure 1,450,465 psi (100-170 bar)
Pressure Relief 3,190 psi (220 bar)
Impact Rate 700-2,600 BPM
Noise Level 119 dBA
Vehicle Compatibility  316GR, 318G, and 320E Skid Steers; 317G and 323E CTLs; 26G and 35G Compact Excavators
