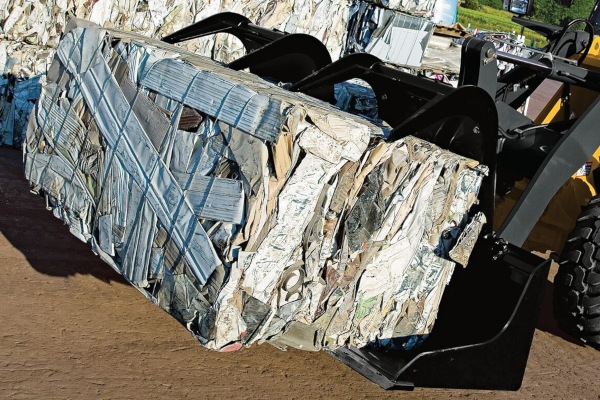

John Deere GS72B Scrap Grapple

Double tap to zoom



Features

  • Two-independent-action hydraulic-powered grapples pick up and grip different-sized objects.
  • 997 mm (39.3 in.) grapple opening loads easily, letting you handle large payloads.
  • Pre-drilled lip makes it easy to add an optional bolt-on replaceable cutting edge for longer life.
  • Greasable pivot points, hardened 25.4-mm (1 in.) pins, and hardened cylinder rods increase durability.

Specifications

Scrap Grapple Bucket GS72B
Weight 505 kg (1,110 lb.)
Width
Overall 1830 mm (72 in.)
Grapple Arm 620 mm (24.4 in.)
Grapples 1540 mm (60.6 in.)
Length
Bucket Depth 840 mm (33 in.)
Grapple Closed 1035 mm (40.7 in.)
Grapple Opened 1060 mm (41.7 in.)
Height
Grapple Closed 830 mm (32.6 in.)
Grapple Opened 1170 mm (46 in.)
Grapple Opening
Tine Tip 950 mm (37.4 in.)
Grapple Closed 460 mm (18.1 in.)
Grapple Opened 1035 mm (40.75 in.)
Pivot Pin Diameter 35 mm (1.375 in.)
Hydraulics
Cylinder Bore Diameter 64 mm (2.5 in.)
Cylinder Rod Diameter 36 mm (1.4 in.)
Cylinder Stroke 206 mm (8.1 in.)
Maximum Operating Pressure 24 000 kPa (3,500 psi)
Hydraulic Connection 12.7-mm (0.5 in.) quick-
connect couplers
Vehicle Compatibility 318G, 320G, 324G, 330G,
and 332G SSLs; 317G and
325G CTLs
