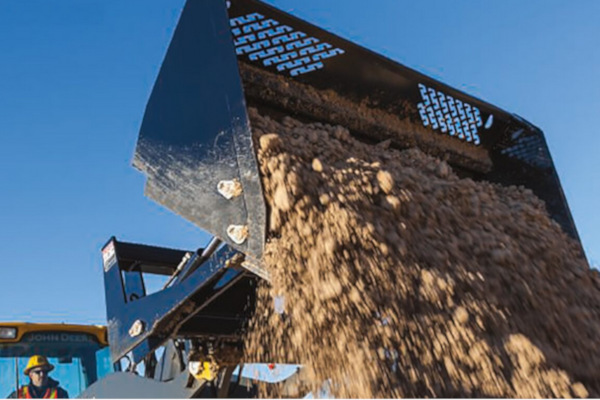

John Deere RB84 Rollout Bucket

Double tap to zoom



Features

  • Quality-manufactured Worksite Pro rollout buckets feature an open design that enables quick, clean, and easy material loading.
  • Available in a range of three sizes, rollout buckets are ideal for achieving elevated dump heights in high-capacity applications, including construction, forestry, agriculture, demolition, recycling, and land management.
  • Each model comes standard with a universal bolt-on cutting edge that is double beveled and reversible, for extended wear life.
  • Industrial-strength, high-pressure cylinders are cushioned for smooth bucket operation and are constructed with induction-hardened, double chrome-plated rods for maximum durability.

Specifications

Model RB84
Weight 580 kg (1,275 lb.)
Width 2150 mm (84.75 in.)
Height 820 mm (32.3 in.)
Length 1270 mm (50 in.)
Heaped Capacity 1.10 m3 (1.44 cu. yd.)
Dump Reach 860 mm (34 in.)
Dump Angle 114 deg.
HYDRAULIC CYLINDER
Pivot Pin Diameter 38 mm (1.5 in.)
Bore Diameter 64 mm (2.5 in.)
Rod Diameter 38 mm (1.5 in.)
Maximum Operating Pressure 25 000 kPa (3,625 psi)
BOLT-ON CUTTING EDGE
Length 200 mm (8.0 in.)
Thickness 19 mm (0.75 in.)
Vehicle Compatibility 330G and 332G SSLs; 323E, 331G,
and 333G CTLs; 204L, 244K-II,
304L, and 324K CWLs*
