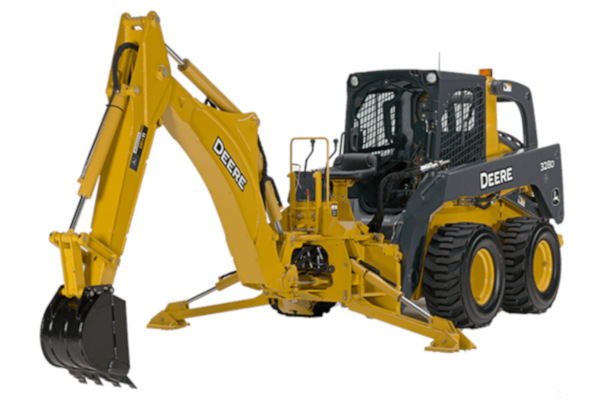

John Deere BH11 Backhoe

Double tap to zoom



Features

John Deere backhoes are ideal for light-duty ag or utility work.

  • Swing speed control
  • 180-deg. swing range maximize maneuverability in confined areas. Low-profile console enhances visibility.
  • Cushioned cylinders smooth operation and limit shock loads. Two-lever boom/swing and dipperstick/bucket control allows precise attachment control.
  • Dual-lock arms quickly and easily latch to the machine mainframe. Handy boom- and swing-lock levers enable secure transport.
  • Heavy-duty buckets feature an easy cleanout design and a trio of linkage options that help increase curl, reach, and breakout force.
  • Standard tilt-away seat and convenient grab handle ease cab entry and exit. Height and fore-and-aft seat adjustment helps boost operator comfort.
  • Like all John Deere attachments, these backhoes are optimized to work with Deere SSLs and CTLs.
  • They’re also compatible with many competitive models. See your local Deere dealer for details.

Specifications

Backhoe BH11B
Weight (without mounting bracket/bucket) 660 kg (1,455 lb.)
Height
Transport 2690 mm (106 in.)
Loading 2440 mm (96 in.)
Operating, Fully Raised 4395 mm (173 in.)
Length
Overall Transport 2360 mm (93 in.)
Reach from Swing Pivot 4395 mm (173 in.)
Loading Reach 1525 mm (60 in.)
Digging Depth
Maximum 3380 mm (133 in.)
Digging (2 ft. Flat Bottom) 3355 mm (132 in.)
Digging (8 ft. Flat Bottom) 3025 mm (119 in.)
Straight Wall 2490 mm (98 in.)
Stabilizer Spread
Transport 1525 mm (60 in.)
Operating 2415 mm (95 in.)
Bucket Rotation 180 deg.
Swing Arc 180 deg.
Hydraulics
Minimum Hydraulic Flow 34 gpm (9 L/min.)
Maximum Hydraulic Flow 45 gpm (12 L/min.)
System Relief Pressure 17 000 kPa (2,500 psi)
Digging Force - Bucket Cylinder 2810 kg (6,200 lb.)
Digging Force - Dipperstick Cylinder 1975 kg (4,350 lb.)
Connection
Hydraulic 12.7-mm (0.5 in.)
Electrical quick-connect couplers NONE
Heavy-Duty Pin-On Buckets
18-in. Bucket with Teeth
Heaped Capacity 0.08 m3 (2.98 cu. ft.)
Weight 75 kg (162 lb.)
Number of Teeth 4
24-in. Bucket with Teeth
Heaped Capacity 0.12 m3 (4.32 cu. ft)
Weight 85 kg (185 lb.)
Number of Teeth 5
36-in. Bucket with Teeth
Heaped Capacity 0.17 m3 (6.14 cu. ft.)
Weight 115 lb. (257 lb.)
Number of Teeth 7
Vehicle Compatibility* 312GR, 314G, 316GR, 318G, 320G,
324G, 330G, and 332G SSLs;
317G, 325G, 331G, and 333G CTLs

*Rear counterweight may improve stability during operation
