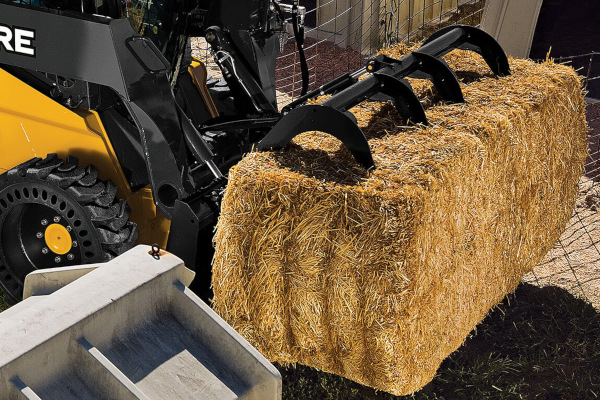

John Deere GU78 Utility Grapple
Double tap to zoom
- One-piece grapples provide a firm grasp for efficient hay and manure handling.
- Standard 114-mm (4.5 in.) tine spacing works well for sorting or sifting materials. Simply add tines for 38-mm (1.5 in.) spacing.
- Greaseable pivot points, 25.4-mm (1 in.) hardened pins, and cylinder rods provide long-term strength and durability.
- Grapple opening of 914 mm (36 in.) accommodates large payloads.
- Like all Worksite Pro™ attachments, these grapples are optimized to work with John Deere skid steers, compact track loaders, and 244J Loader, and are compatible with most competitive models. See your local John Deere skid steer dealer for details.
|Width||1956 mm (77 in.)|
|Length||970 mm (38.2 in.)|
|Grapple Closed||700 mm (27.6 in.)|
|Grapple Open||1162 mm (45.7 in.)|
|Grapple Opening||914 mm (36 in.)|
|Number of Tines|
|Opening Between Tines||114 mm (4.5 in.)|
|Optional Spacing||38 mm (1.5 in.)|
|Operating Weight||258 kg (568 lb.)|
|Vehicle Compatibility||318D/E, 319D/E, 320D/E,
323D/E, 326D/E, 328D/E,
329D/E, 332D/E, and 333D/E
