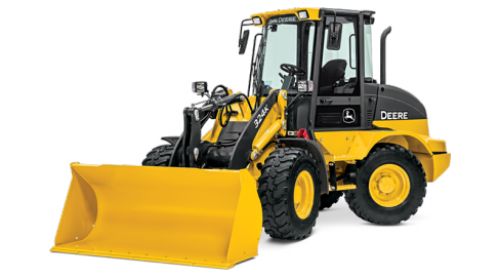

John Deere 324K
John Deere 324K for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Edinboro, Fairmount City, and Stoneboro, PA.
Under 2 cu. yd. Compact Loaders
- EPA Final Tier 4 emission-certified four-cylinder turbocharged engine delivers power without compromise.
- Unique stereo steering makes this compact loader even more productive, for tight turns and extra agility in close quarters.
- Manual low-speed differential lock delivers the traction needed to go deeper into the pile for bigger bucket loads.
- Comes standard with return to dig, quick-coupler, and high travel-speed range.
- Hydraulically driven fan runs only as needed, for efficient cooling, reduced noise, and lower fuel consumption.
- Oscillating rear axle and elastic articulation at the pivot smooth the ride, for greater material retention and reduced operator fatigue.
|Model||324 K Tier 4 Final|
|Emission Rating||Tier 4|
|Displacement, ltr (Inches³)||3.3 (203)|
|Rated Speed, rpm||2400|
|Engine Output - Net, kW (hp)||52 (70)|
|Torque, Nm (lbf / ft)||279 (206)|
|Front Differential Type||Locking|
|Rear Differential Type||Open|
|Tire size - Standard||405 / 70 R20|
|Service Brake - Type||Wet Disc / Drum|
|Service Brake - Location||All Wheels|
|Service Brake - Actuation||Hydraulic|
|Parking Brake - Type||Wet Disc|
|Height - Over Cab, mm (ft/in)||2790 (9 ft 2 in)|
|Wheelbase, mm (ft/in)||2300 (7 ft 7 in)|
|Length - Including Bucket, mm (ft/in)||5760 (18 ft 11 in)|
|Ground clearance, mm (inches)||386 (15.2)|
|Width Over tires - Std mm, mm (ft/in)||2160 (7 ft 1 in)|
|Height - Pivot Pin, mm (ft/in)||3350 (11 ft )|
|Reach - At 2130mm 45° Dump, mm (ft/in)||1300 (4 ft 3 in)|
|Turning Circle - Maximum, mm (ft/in)||8300 (27 ft 3 in)|
|Fuel Tank, ltr (gallons (US))||81 (21.5)|
|Hydraulic Tank, ltr (gallons (US))||80 (21.1)|
|Axle - Front, ltr (gallons (US))||7.3 (1.925)|
|Axle - Rear, ltr (gallons (US))||6.7 (1.775)|
|Transmission, ltr (gallons (US))||0.8 (0.2)|
|Heaped Capacity, m³ (yd³)||1.1 (1.4)|
|Bucket Capacity - Smallest, m³ (yd³)||1.1 (1.4)|
|Largest bucket capacity, m³ (yd³)||1.6 (2)|
|Breakout - Bucket , kgf (lbf)||5608 (12364)|
|Ride Control System||Optional|
|System Voltage, V||12|
|Alternator Output, Amp||80|
|Pump Flow, lt/min (gallons (US) / min)||93 (24)|
|System Pressure, bar (PSI)||189.6 (2750)|
|Operating Weight, kg (lbs)||6390 (14087)|
|Dump Height mm, mm (ft/in)||2670 (8 ft 9 in)|
|Reach at Full Height mm, mm (ft/in)||884 (2 ft 11 in)|
|Tipping Load - Straight kg, kg (lbs)||4850 (10692)|
