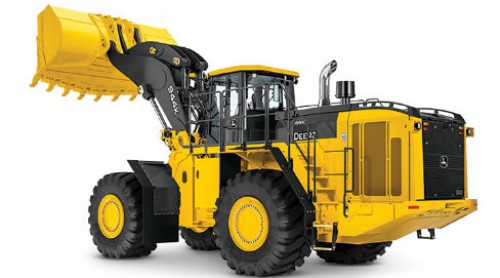

John Deere 944K Hybrid

John Deere 944K Hybrid for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Edinboro, Fairmount City, and Stoneboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Over 5 cu. yd. Production Loaders



  • John Deere PowerTech™ PSX 6135 13.5L (824 cu. in.) engine runs over an efficient speed-range band, lowering noise levels, improving fuel economy, providing consistent boom and bucket response, and reducing engine wear.
  • The 944K Hybrid Wheel Loader can provide significant fuel savings over 9-yard3 (6.88 m3) loaders with conventional drivetrains.*
  • John Deere fully integrated hybrid-electric drivetrain engineered for productivity and durability while delivering revolutionary efficiency.
  • Individual oil-cooled, brushless, AC, electric wheel motors with standard traction control that significantly reduces tire wear and damage from spinning and slicing.
  • Extended engine-only, powertrain, powertrain and hydraulics, and full-machine warranties available.

*Actual fuel consumption rates and savings will vary with machine application, utilization, operator, and model of competitive unit.

Manufacturer John Deere
Model 944 K Interim Tier 4
DRIVELINE
Engine Manufacturer  John Deere
Engine Model  PowerTech PSX 6135
Emission Rating  Interim Tier 4
Displacement, ltr (Inches³)  13.5 (824)
Rated Speed, rpm  1600
Engine Output - Net, kW (hp)  400 (536)
Torque, Nm (lbf / ft)  2530 (1866)
Torque Rise, %  23
Transmission Type  A/C Electric
Tire size - Standard  35 / 65 R33 - Michelin
Service Brake - Type  Wet Multi Disc
Service Brake - Location  All Wheels
Service Brake - Actuation  Hydraulic
Parking Brake - Type  Wet Multi Disc
DIMENSIONS
Height - Over Cab, mm (ft/in)  4150 (13 ft 4 in)
Wheelbase, mm (ft/in)  4500 (14 ft 9 in)
Length - Including Bucket, mm (ft/in)  11690 (38 ft 4 in)
Ground clearance, mm (inches)  582 (22.9)
Width Over tires - Std   mm, mm (ft/in)  3729 (12 ft 3 in)
Height - Pivot Pin, mm (ft/in)  5350 (17 ft 7 in)
Reach - At 2130mm 45° Dump, mm (ft/in)  2870 (9 ft 5 in)
Turning Circle - Maximum, mm (ft/in)  17860 (58 ft 6 in)
CAPACITIES
Fuel Tank, ltr (gallons (US))  761 (201)
Hydraulic Tank, ltr (gallons (US))  378 (100)
Transmission, ltr (gallons (US))  34 (9)
Heaped Capacity, m³ (yd³)  7.65 (10)
Bucket Capacity - Smallest, m³ (yd³)  6.5 (8.5)
Largest bucket capacity, m³ (yd³)  7.65 (10)
Breakout - Bucket , kgf (lbf)  46896 (103388)
Ride Control System  Optional
System Voltage, V  24
Alternator Output, Amp  150
Pump Type  Axial Piston Pump
Pump Flow, lt/min (gallons (US) / min)  379 (100)
System Pressure, bar (PSI)  350 (5000)
WEIGHTS
Operating Weight, kg (lbs)  53500 (117947)
COMPARABLE BUILD
Dump Height   mm, mm (ft/in)  3770 (12 ft 4 in)
Reach at Full Height   mm, mm (ft/in)  1800 (5 ft 11 in)
Tipping Load - Straight   kg, kg (lbs)  38059 (83906)
