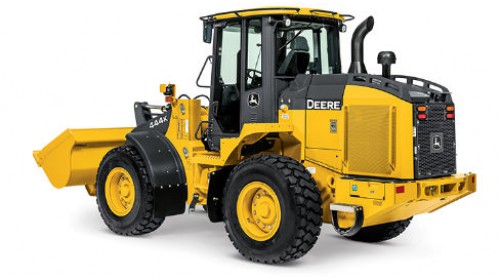

John Deere 444K
John Deere 444K for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Edinboro, Fairmount City, and Stoneboro, PA.
2 - 3.0 cu. yd. Small Loaders
- Fluid-efficient EPA Final Tier 4 (FT4)/EU Stage IV diesel engine delivers impressive torque to help maintain good boom and bucket speed in and out of the pile for heaped loads, even in wet or hard-packed material.
- Standard four-speed transmission adapts to changes in speed and load, for smooth shifting in all gears. Improves productivity and increases fuel efficiency, especially during stockpiling and ramp climbing.
- Optional axle cooling and filtration for increased durability in demanding conditions.
- Remote-start battery terminals improve remote starting ease.
- Optional right-side steps and platform provide easy access to the right side of the machine.
|Model||444 K Tier 4 Final|
|Engine Manufacturer||John Deere|
|Engine Model||PowerTech PSS 4045|
|Emission Rating||Tier 4|
|Displacement, ltr (Inches³)||4.5 (275)|
|Rated Speed, rpm||2100|
|Engine Output - Net, kW (hp)||92 (124)|
|Torque, Nm (lbf / ft)||507 (374)|
|Torque Rise, %||34|
|Front Differential Type||Locking|
|Rear Differential Type||Open|
|Tire size - Standard||17.5 R25|
|Service Brake - Type||Wet Multi Disc|
|Service Brake - Location||All Wheels|
|Service Brake - Actuation||Hydraulic|
|Parking Brake - Type||Wet Multi Disc|
|Height - Over Cab, mm (ft/in)||3170 (10 ft 5 in)|
|Wheelbase, mm (ft/in)||2760 (9 ft 6 in)|
|Length - Including Bucket, mm (ft/in)||6860 (22 ft 6 in)|
|Ground clearance, mm (inches)||393 (15.5)|
|Width Over tires - Std mm, mm (ft/in)||2415 (7 ft 11 in)|
|Height - Pivot Pin, mm (ft/in)||3600 (11 ft 10 in)|
|Reach - At 2130mm 45° Dump, mm (ft/in)||1440 (4 ft 9 in)|
|Turning Circle - Maximum, mm (ft/in)||11650 (38 ft 3 in)|
|Fuel Tank, ltr (gallons (US))||220 (60)|
|Hydraulic Tank, ltr (gallons (US))||118.7 (31.4)|
|Axle - Front, ltr (gallons (US))||22 (5.75)|
|Axle - Rear, ltr (gallons (US))||22 (5.75)|
|Transmission, ltr (gallons (US))||18.5 (4.875)|
|Heaped Capacity, m³ (yd³)||1.9 (2.5)|
|Bucket Capacity - Smallest, m³ (yd³)||1.9 (2.5)|
|Largest bucket capacity, m³ (yd³)||3.1 (4)|
|Breakout - Bucket , kgf (lbf)||7960 (17549)|
|Ride Control System||Optional|
|System Voltage, V||24|
|Alternator Output, Amp||100|
|Pump Flow, lt/min (gallons (US) / min)||140 (37)|
|System Pressure, bar (PSI)||248.21 (3600)|
|Operating Weight, kg (lbs)||11350 (25022)|
|Dump Height mm, mm (ft/in)||2670 (8 ft 9 in)|
|Reach at Full Height mm, mm (ft/in)||1040 (3 ft 5 in)|
|Tipping Load - Straight kg, kg (lbs)||9263 (20421)|
