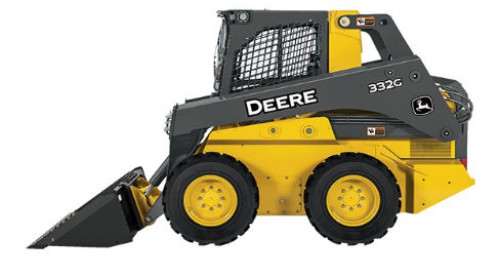

John Deere 332G

John Deere 332G for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Edinboro, Fairmount City, and Stoneboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Skid Steers



  • Final Tier 4/EU Stage IV engine
  • 40 percent more breakout force
  • Increased auxiliary hydraulic flow
  • Automatic shutdown system
Manufacturer John Deere
Model 332 G Tier 4 Final
DESCRIPTION
Lift Geometry  Vertical
Fleet Management  Yes
Precision Guidance  No
Proximity Guidance  No
DRIVELINE
Engine Manufacturer  Yanmar
Engine Model  4TNV94FHT
Emission Rating  Tier 4
Aspiration  Turbo. Intercooled
Displacement, ltr (Inches³)  3.1 (186.3)
Rated Engine Speed, rpm  2500
SAE Net Power, kW (hp)  72 (96.6)
SAE Gross Power, kW (hp)  74.6 (100)
Max. Gross Torque, Nm (lbf / ft)  395 (291.3)
Drive Chain Rating [ANSI]  100 - HD
Tire size - Standard  14 x 17.5 - 14PR Hauler
DIMENSIONS
Length - No Bucket, mm (inches)  3100 (122)
Length - With Bucket, mm (inches)  3710 (146)
Width - No Bucket, mm (inches)  1990 (78.4)
Overall Height, mm (inches)  2190 (86.3)
Ground Clearance, mm (inches)  250 (9.7)
Wheelbase, mm (inches)  1270 (49.9)
Rear Departure Angle, °  29
Height to Hinge Pin   mm   mm, mm (inches)  3350 (132)
Dump Angle, °  48
Dump Height - Maximum, mm (inches)  2680 (105.6)
Reach - Max Dump Height, mm (inches)  710 (28)
Rollback - Ground Level, °  35
CAPACITIES
Fuel Tank, ltr (gallons (US))  96.5 (25.5)
PERFORMANCE
Rated Operating Capacity - Optional Counterweight, kg (lbs)  1703 (37500)
Rated Operating Capacity, kg (lbs)  1633 (3600)
Tipping Capacity (SAE), kg (lbs)  3269 (7200)
Axle Torque - Maximum, Nm (lbf / ft)  9289 (6830)
Speed - Maximum, kph (mph)  19.3 (12)
Breakout - Lift, kN (lbf)  37.8 (8520)
Breakout - Bucket, kN (lbf)  61.8 (13904)
Hydraulic Power   kW   kW, kW (hp)  37.29 (50)
Hydraulic Power - Option   kW   kW, kW (hp)  61.234 (82.1)
Pump Output, lt/min (gallons (US) / min)  95 (25)
Pump Flow - Option, lt/min (gallons (US) / min)  156 (41.1)
System Pressure, bar (PSI)  237.87 (3450)
WEIGHTS
Operating Weight, kg (lbs)  4540 (10000)
