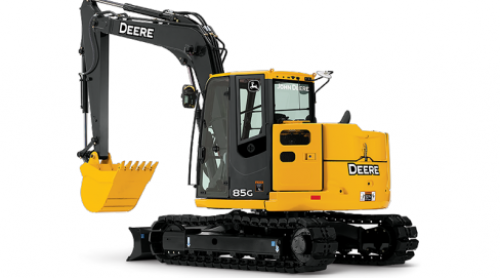

John Deere 85G

John Deere 85G for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Edinboro, Fairmount City, and Stoneboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Mid-Size Excavators



  • Final Tier 4 emission-certified engine
  • Reduced tail swing
  • Independent-swing boom
  • Easy-to-navigate enhanced LCD monitor
Manufacturer John Deere
Model 85G Tier 4 Final
DRIVELINE
Emission Rating  Tier 4
Engine Manufacturer  Yanmar
Number Of Cylinders (Per Engine)  4
Displacement, ltr (Inches³)  3.3 (202)
Rated speed, rpm  2000
Engine Output - Net, kW (hp)  42.4 (56.9)
Number Of Carrier Rollers - Each Side  1
Number Of Track Rollers - Each Side  5
Track Shoe Width, mm (inches)  450 (18)
DIMENSIONS
Transport Length Mono Boom, mm (ft/in)  6820 (22 ft 5 in)
Transport Height - Maximum, mm (ft/in)  2610 (8 ft 7 in)
Overall Width, mm (ft/in)  2200 (7 ft 3 in)
Track Length On Ground, mm (ft/in)  2290 (7 ft 6 in)
Undercarriage Overall Length, mm (ft/in)  2920 (9 ft 7 in)
Tailswing Radius, mm (ft/in)  1490 (4 ft 11 in)
Ground Clearance, mm (inches)  360 (14)
Dozer Blade Height, mm (inches)  460 (18)
Dozer Blade Width, mm (ft/in)  2200 (7 ft 3 in)
Width over standard tracks, mm (ft/in)  2200 (7 ft 3 in)
Track Gauge, mm (ft/in)  1750 (5 ft 9 in)
Digging Reach - Mono Boom, mm (ft/in)  7700 (25 ft 3 in)
Ground Level Reach - Mono Boom, mm (ft/in)  7550 (24 ft 9 in)
Dig Height - Mono Boom, mm (ft/in)  7140 (23 ft 5 in)
Dump Height - Mono Boom   mm, mm (ft/in)  5080 (16 ft 8 in)
Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in)  4200 (13 ft 9 in)
Dig Depth - Mono Boom, mm (ft/in)  4510 (14 ft 10 in)
Standard Dipper   mm, mm (ft/in)  2120 (6 ft 11 in)
CAPACITIES
Fuel Tank, ltr (gallons (US))  120 (31.7)
Hydraulic Tank, ltr (gallons (US))  56 (15)
Voltage, V  24
Number Of Batteries  2
PERFORMANCE
Ground Bearing Pressure   kPa, kPa (PSI)  41.5 (6)
Slew Speed, rpm  10.5
Slew Torque, kNm (lbf / ft)  16.6 (12244)
Travel Speed - High, kph (mph)  5 (3.1)
Tractive Force, kN (lbf)  65.2 (14661)
Dipper Tearout, kN (lbf)  30.7 (6902)
Bucket Breakout, kN (lbf)  46.6 (10476)
Gradeability, %  70
Main Pumps - Maximum Flow, lt/min (gallons (US) / min)  144 (38)
Bucket Pressure, bar (PSI)  260 (3771)
WEIGHTS
Operating Weight, kg (lbs)  8729 (19244)
