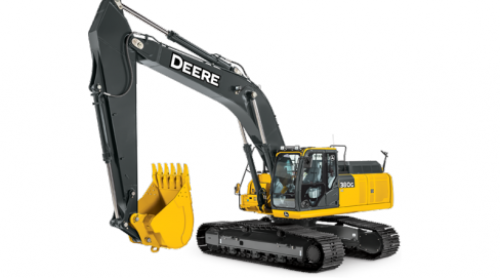

John Deere 380G LC

John Deere 380G LC for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Edinboro, Fairmount City, and Stoneboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Mid-Size Excavators



  • Final Tier 4-certified engine
  • Standard heavy-duty boom
  • Heavy-duty 3.2 m (10 ft. 6 in.) arm
  • Heavy-duty undercarriage and frame
Manufacturer John Deere
Model 380G LC Tier 4 Final
DRIVELINE
Emission Rating  Tier 4
Engine Manufacturer  John Deere
Number Of Cylinders (Per Engine)  6
Displacement, ltr (Inches³)  9 (549)
Rated speed, rpm  1900
Engine Output - Net, kW (hp)  202 (271)
Number Of Carrier Rollers - Each Side  2
Number Of Track Rollers - Each Side  8
Track Shoe Width, mm (inches)  800 (32)
DIMENSIONS
Transport Length, mm (ft/in)  11290 (37 ft 1 in)
Transport Height - Maximum, mm (ft/in)  3600 (11 ft 10 in)
Overall Width, mm (ft/in)  3390 (11 ft 2 in)
Track Length On Ground, mm (ft/in)  4050 (13 ft 3 in)
Undercarriage Overall Length, mm (ft/in)  4940 (16 ft 2 in)
Tailswing Radius, mm (ft/in)  3600 (11 ft 10 in)
Ground Clearance, mm (inches)  500 (20)
Width over standard tracks, mm (ft/in)  3390 (11 ft 2 in)
Track Gauge, mm (ft/in)  2590 (8 ft 6 in)
Digging Reach - Mono Boom, mm (ft/in)  11860 (38 ft 11 in)
Ground Level Reach - Mono Boom, mm (ft/in)  11670 (38 ft 3 in)
Dig Height - Mono Boom, mm (ft/in)  10750 (35 ft 3 in)
Dump Height - Mono Boom, mm (ft/in)  7630 (25 ft )
Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in)  8040 (26 ft 5 in)
Dig Depth - Mono Boom, mm (ft/in)  8180 (26 ft 10 in)
Standard Dipper For Lifting, mm (ft/in)  4000 (13 ft 1 in)
Capacities
Fuel Tank, ltr (gallons (US))  628 (166)
Hydraulic Tank, ltr (gallons (US))  193 (51)
Voltage, V  24
Number Of Batteries  2
Performance
Ground Bearing Pressure, kPa (PSI)  53.5 (7.77)
Slew Speed, rpm  10.7
Slew Torque, kNm (lbf / ft)  120 (88507)
Travel Speed - High, kph (mph)  5 (3.1)
Tractive Force, kN (lbf)  297.6 (66900)
Dipper Tearout, kN (lbf)  159 (35745)
Bucket Breakout, kN (lbf)  246 (55303)
Gradeability, %  70
End lift - 7.5m Reach, kg (lbs)  9874 (21222)
Side lift - 7.5m Reach, kg (lbs)  5875 (12630)
Main Pumps - Maximum Flow, lt/min (gallons (US) / min)  576 (152.2)
Bucket Pressure, bar (PSI)  343 (4975)
Boost Pressure, bar (PSI)  380 (5511)
Weights
Operating Weight, kg (lbs)  38100 (83992)
