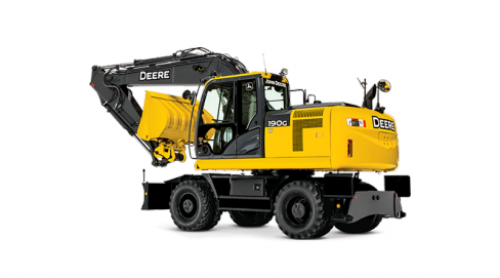

John Deere 190G W

John Deere 190G W for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Edinboro, Fairmount City, and Stoneboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Mid-Size Excavators



  • Interim Tier 4 emission-certified engine
  • Highly efficient, heavy-duty cooling system
  • Short wheelbase enables maneuverability
  • Two boom options – mono or two-piece
Manufacturer John Deere
Model 190G W Interim Tier 4
DRIVELINE
Engine Manufacturer  Isuzu
Number Of Cylinders  4
Displacement, ltr (Inches³)  5.2 (317)
Rated Speed, rpm  2000
Engine Output - Net, kW (hp)  119 (159)
Tire size - Standard  10.00-20
DIMENSIONS
Transport Length - Mono Boom, mm (ft/in)  8980 (29 ft 6 in)
Transport Height - Over Mono Boom, mm (ft/in)  3130 (10 ft 3 in)
Overall Width, mm (ft/in)  2450 (8 ft )
Tailswing Radius, mm (ft/in)  2320 (7 ft 7 in)
Wheelbase, mm (ft/in)  2650 (8 ft 8 in)
Cab Height, mm (ft/in)  3130 (10 ft 3 in)
Ground Clearance, mm (inches)  350 (14)
Principal Stick length, mm (ft/in)  2710 (8 ft 11 in)
Digging Reach - Mono Boom, mm (ft/in)  9580 (31 ft 5 in)
Dump Clearance Height - Mono Boom, mm (ft/in)  6450 (21 ft 2 in)
Dig Depth - Mono Boom, mm (ft/in)  5830 (19 ft 2 in)
Dozer Blade  Optional
Dozer Blade - Width, mm (ft/in)  2530 (8 ft 4 in)
Dozer Blade - Height, mm (inches)  590 (23)
End Lift - 4 Stabs Down At 7.5M GL Reach (Mono), kg (lbs)  4750 (10210)
Side Lift - 4 Stabs Down At 7.5M GL Reach (Mono), kg (lbs)  3450 (7410)
Capacities
Fuel Tank, ltr (gallons (US))  290 (76.6)
Hydraulic Tank, ltr (gallons (US))  100 (26.4)
Battery Voltage, V  24
Performance
Slew Speed, rpm  12.2
Slew Torque, kNm (lbf / ft)  53 (39091)
Tractive Force, kN (lbf)  93.5 (20570)
Low range fwd speed 1, kph (mph)  8.6 (5.3)
High range fwd speed 2, kph (mph)  35 (21.8)
Gradeability, Degrees / %  34 / 67 º / %
Max bucket breakout, Mono Boom, kN (lbf)  123 (27651)
Max dipper tearout, Mono Boom, kN (lbf)  91 (20458)
Main Pump  2 Variable axial piston & 1 gear
Main Pumps - Maximum Flow, lt/min (gallons (US) / min)  330 (87.2)
Boom Pressure, bar (PSI)  343 (4975)
Boost Pressure, bar (PSI)  363 (5265)
Weights
Mono weight with 4 stabs, kg (lbs)  20200 (44530)
