John Deere 661R EFI
John Deere 661R EFI for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.
600 R Series

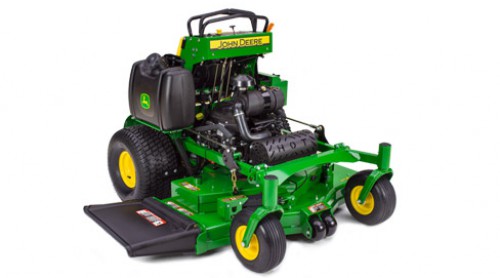

QuikTrak 661R EFI
The QuikTrak 661R EFI has a commercial-quality electronic fuel injected (EFI) V-twin air-cooled engine for faster starts, smoother operation, and greater efficiency. It is coupled with an easy-to-use hydrostatic transmission that is a real time-saver, especially for new operators. Productivity gains also result from quicker loading and unloading between job sites, shorter interruptions for debris collection while mowing, and reduced operator fatigue.
- Compact design for easy hauling
- Hydrostatic drive system
- Commercial-quality engine
- Easy to maintain
| Manufacturer | John Deere |
| Model | 661R EFI (2017) |
| Engine | |
| Manufacturer | --- |
| Model no. | ECV740 EFI |
| Horsepower (gross) | At 3600 rpm, 25 hp |
| 18.6 kW | |
| Displacement | 45.6 cu in. |
| 747 cc | |
| Cylinders | Two, V-twin |
| Crankcase capacity | --- |
| Oil filter | Full flow, replaceable |
| Lubrication | Full pressure |
| Cooling | Forced air |
| Air cleaner | Heavy-duty canister with safety element |
| Pre-cleaner | --- |
| Fuel system | |
| Fuel type | Gasoline, electronic fuel injection, |
| Fuel consumption | --- |
| Fuel tank capacity | 5.6 U.S. gal. |
| 21.2 L | |
| Fuel tank switch/shut-off valve | Yes |
| Electrical system | |
| Charge system | At 3600 rpm. 20 amp |
| Battery voltage | 12 V |
| Cold cranking amp | --- |
| Hour meter | Digital |
| Operator presence starting system | Yes |
| Drivetrain | |
| Hydraulic pumps | Hydro-Gear with fans, 0.73 cu in. |
| 12 cc | |
| Wheel motors | Hydro-Gear, 15 cu in. |
| 246 cc | |
| Travel speed | |
| Forward | 0-9.6 mph |
| 0-15.4 km/h | |
| Reverse | 0-5.5 mph |
| 0-8.9 km/h | |
| Speed and direction control | Twin hand-controlled levers |
| Hydraulic capacity | With filter-wet, 2.9 qt |
| 2.7 L | |
| Dry, 5 qt | |
| 4.7 L | |
| Hydraulic oil cooler | --- |
| Filter | Spin-on replaceable |
| Tires | |
| Drive tires | 20x10-8 Turf Master |
| Rear tires | --- |
| Load rating | 4 PR |
| Brakes | |
| Dynamic braking | Dual hand-controlled levers |
| Park brake | Tire engagement |
| Park brake actuation | Hand lever |
| PTO | |
| Type | Electro-Magnetic with brake, 200 lb-ft |
| 271 Nm | |
| Drive | Dual B-section V-belt with Kevlar® cord |
| Mower decks | |
| Available widths | 61 in. |
| 155 cm | |
| Deck construction | Fabricated steel, floating mount system |
| Deck thickness | 7 gauge |
| 0.177 in. | |
| 4.6 mm | |
| Discharge | Side |
| Height-of-cut range | 1.5-5 in. |
| 3.8-12.7 cm | |
| Increments | 0.25 in. |
| 0.635 cm | |
| Cutting width | 61 in. |
| 155 cm | |
| Blades | |
| Length | --- |
| Thickness | --- |
| Tip speed | 18,900 fpm |
| 5,761 m/min | |
| Number | Three |
| Wheels | |
| Caster wheel type | No-flat semi-pneumatic with sealed bearings |
| Caster wheel size | 13x6.5-6 |
| Front anti-scalp rollers | Center, left |
| Rear anti-scalp rollers | --- |
| Dimensions | |
| Length | 68 in. |
| 172.7 cm | |
| Width | Deflector down, 75 in. |
| 190.5 cm | |
| Height | 47 in. |
| 119 cm | |
| Weight | 998 lb-ft |
| 452.7 kg | |
| Additional information | |
| Date collected | 08-Nov-2016 |
