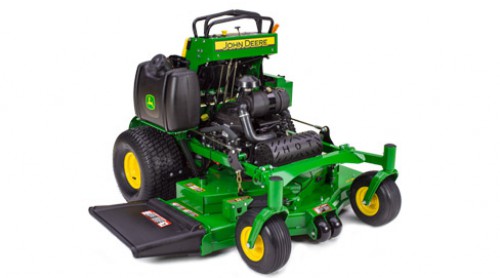

John Deere 652R MOD

John Deere 652R MOD for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Edinboro, Fairmount City, and Stoneboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

600 R Series



The QuikTrak 652R MOD has a commercial-quality V-twin air-cooled engine coupled with an easy-to-learn hydrostatic transmission drive that is a real time-saver, especially for new operators.  It also comes with a 132-cm (52-in.) seven-gauge, Mulch On Demand™ mower deck. Substantial productivity gains can be expected because of quicker loading and unloading between job sites, shorter interruptions for debris collection while mowing, and reduced operator fatigue.

  • Compact design for easy hauling
  • Hydrostatic drive system
  • Commercial-quality engine
  • Mulch-On-Demand deck
Manufacturer John Deere
Model 652R MOD (2016)
Engine
Manufacturer  ---
Model no.  FX730V
Horsepower (gross)  At 3600 rpm 23.5 hp
   17.5 kW
Displacement  44.3 cc
   726 cu in.
Cylinders  Two, V-twin
Crankcase capacity  W/filter 2.2 qt
   2.1 L
Oil filter  Full flow, replaceable
Lubrication  Full pressure
Cooling  Forced air
Air cleaner  Dry type, dual stage with unloader valve
Pre-cleaner  ---
Fuel system
Fuel type  Gasoline
Fuel consumption  ---
Fuel tank capacity  5.6 U.S. gal.
   21.2 L
Fuel tank switch/shut-off valve  Yes
Electrical system
Charge system  At 3600 rpm 20 amp
Battery voltage  12 V
Cold cranking amp  ---
Hour meter  Yes
Operator presence starting system  Yes
Drivetrain
Hydraulic pumps  Hydro-Gear with fans 0.73 cu in.
   12 cc
Wheel motors  Hydro-Gear 15 cu in.
   246 cc
Travel speed
Forward  0-9.6 mph
   0-15.4 km/h
Reverse  0-5.5 mph
   0-8.9 km/h
Speed and direction control  Twin hand-controlled levers
Hydraulic capacity  W/filter-wet, dry 2.9, 5 qt
   2.7, 4.7 L
Hydraulic oil cooler  ---
Filter  Spin-on replaceable
Tires
Drive tires  20x10-8 Turf Master
Rear tires  ---
Load rating  4 PR
Brakes
Dynamic braking  Dual hand-controlled levers
Park brake  Tire engagement
Park brake actuation  Hand lever
PTO
Type  Electro-Magnetic w/brake 200 lb-ft
   271 Nm
Drive  Dual B-section V-belt
Mower decks
Available widths  Mulch On Demand™ 52 in.
   132 cm
Deck construction  Fabricated steel, floating mount system, Mulch On Demand included
Deck thickness  7 gauge, 0.177 in.
   4.6 mm
Discharge  Side or mulch
Height-of-cut range  1.5-5 in.
   3.8-12.7 cm
Increments  0.25 in.
   6.4 mm
Cutting width  52 in.
   132 cm
Blades
Length  ---
Thickness  ---
Tip speed  18,900 fpm
   5761 m/min
Number  Three
Wheels
Caster wheel type  No-flat semi-pneumatic w/sealed bearings
Caster wheel size  13x6.5-6
Front anti-scalp rollers  Center, left
Rear anti-scalp rollers  ---
Dimensions
Length  66 in.
   167.6 cm
Width  W/deflector down 66 in.
   167.6 cm
Height  47 in.
   119 cm
Weight  927 lb
   420.5 kg
