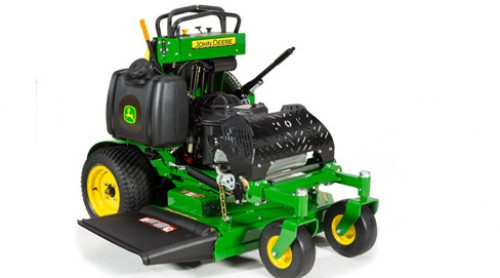

John Deere 636M

John Deere 636M for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

600 M Series


  • Compact design for easy hauling
  • Hydrostatic drive system
  • Commercial-quality engine
  • Easy to maintain
Manufacturer John Deere
Model 636M (2017)
Manufacturer  ---
Model no.  FS600V
Horsepower (gross)  At 3600 rpm, 18.5 hp
   13.8 kW
Displacement  36.8 cu in.
   603 cc
Cylinders  Two, V-twin
Crankcase capacity  With filter, 2.2 qt
   2.1 L
Oil filter  Full flow, replaceable
Lubrication  Full pressure
Cooling  Forced air
Air cleaner  Dry type, dual stage
Pre-cleaner  ---
Fuel system
Fuel type  Gasoline
Fuel consumption  ---
Fuel tank capacity  5.5 U.S. gal.
   20.8 L
Fuel tank switch/shut-off valve  Yes
Electrical system
Charge system  At 3600 rpm, 15 amp
Battery voltage  12 V
Cold cranking amp  300 amp
Hour meter  Digital
Operator presence starting system  Yes
Hydraulic pumps  Hydro-Gear, 0.61 cu in.
   10 cc
Wheel motors  Hydro-Gear HGM-P, 12 cu in.
   196 cc
Travel speed
Forward  Infinite, 0-8.2 mph
   Infinite, 0-13.2 km/h
Reverse  Infinite, 0-3.5 mph
   Infinite, 0-5.6 km/h
Speed and direction control  Twin hand-controlled levers
Hydraulic capacity  With filter, dry, 5 qt
   4.7 L
Hydraulic oil cooler  Yes
Filter  Spin-on replaceable
Drive tires  18x8.5-10 Turf Master
Rear tires  ---
Load rating  4 PR
Dynamic braking  Dual hand-controlled levers
Park brake  Tire engagement
Park brake actuation  Hand lever
Type  Electro-magnetic with brake, 125 lb-ft
   169 Nm
Drive  Dual B-section V-belt with Kevlar® cord
Mower decks
Available widths  36 in.
   91.4 cm
Deck construction  Fabricated steel, floating mount system
Deck thickness  7 gauge
   0.177 in.
   4.6 mm
Discharge  Side
Height-of-cut range  1.25-5 in.
   3.2-12.7 cm
Increments  0.25 in.
   0.635 cm
Cutting width  36 in.
   91 cm
Length  18 in.
   45.7 cm
Thickness  0.203 in.
   0.516 cm
Tip speed  18,900 fpm
   5,761 m/min
Number  Two
Caster wheel type  No-flat semi-pneumatic with sealed bearings
Caster wheel size  11x4-5
Front anti-scalp rollers  ---
Rear anti-scalp rollers  ---
Length  62 in.
   157.5 cm
Width  Deflector down, 49.5 in.
   125.7 cm
Height  46 in.
   117 cm
Weight  With full fuel and oil, 731 lb
   332 kg
Additional information
Date collected  08-Nov-2016
