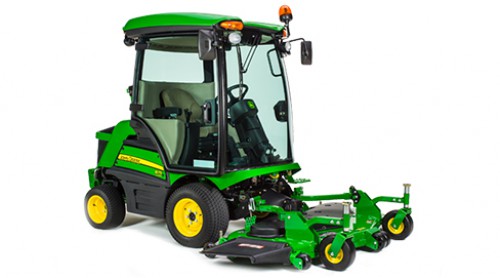

John Deere 1585 TerrainCut™ Front Mower

John Deere 1585 TerrainCut™ Front Mower for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

1500 Series TerrainCut™ Front Mower


  • 7-Iron™ PRO Side Discharge or Fastback™ Rear Discharge Deck
  • Integrated ComfortCab
  • Diesel Engine
  • Compatible with select front blade, snow blower and broom attachments
Manufacturer John Deere
Model 1585 Terrain Cut 4WD(CAB) TIER 4 (2016)
Manufacturer  3TNV88C
Net  ---
Gross  PS, 37.4 hp
   27.5 kW
Rated engine rpm  3000 rpm
Cylinders  Three
Displacement  100.2 cu in.
   1.64 L
Maximum torque  At 1950 rpm, 80.4 lb-ft
   109 Nm
Injection  Direct
Fuel type  Diesel
Fuel capacity  16 U.S. gal.
   60.6 L
Cooling  Liquid
Cooling capacity  10 U.S. qt
   9.5 L
Air cleaner  Dual element dry type
Air restriction indicator  Standard
Charging system  Automotive type
Alternator, amp  95 amp
Battery  12 V
Power Train
Type  Hydrostatic full time 4WD, on-demand
Speed and direction control  Two-pedal foot
Cruise control  Optional
Hi/Lo range  Yes, Dual speed transmission
Hi forward  0-15 mph
   0-24 km/h
Lo forward  0-8 mph
   0-13 km/h
Hi reverse  0-5 mph
   0-8 km
Lo reverse  0-5 mph
   8 km/h
4-wheel drive  Standard
On demand  Yes
Full time  Yes
Shift on-the-go  Yes
Differential lock  Yes
PTO  Front
PTO clutch  Wet multi-disk, modulated
PTO drive output  2000 rpm
Final drives
Type  Open center
Pump capacity  6.3 U.S. gpm
   23.8 L/min
Spool valve  Front lift, standard
Lift cylinders  Two
Type  Hydraulic cylinder
Turns lock-to-lock  2 maximum, 1.5 minimum
Type  Internal wet disk
Individual turn brakes  Standard
Master brake  Standard, locking
Tire size
Drive  26x12-12
Steering  20x10-10
Weight transfer
Type  Optional hydraulic
Wheelbase  49.2 in.
   125 cm
Ground clearance  7 in.
   17.8 cm
Length  Less mower deck, 86.7 in.
   220.2 cm
Overall width  With wide stance, 58 in.
   147 cm
ROPS  Factory installed ComfortCab™
ROPS certification  2-POST: OSHA 1928; Canadian Std.: CSA-352; 4-POST: SAE J2194; EU Standard: 86/298/EEC; ISO 21299:2009
Overall height with ROPS  With cab, 85.2 in.
   216 cm
Overall height with ROPS folded  ---
Shipping weight  Net weight, without mower or fuel, 2593 lb
   1176 kg
Mower decks (side discharge)
Construction  One-piece stamped steel; 7-Iron PRO
Deck thickness  7 gauge
   0.179 in.
   4.6 mm
Cutting width  60, 72 in.
   152, 183 cm
Deck offset  Yes
Cutting height  1-6 in.
   2.54-15.24 cm
Belt tensioning  Spring loaded
Blade tip speed  18,000 fpm
   5486 m/min
Caster wheels  ---
Type  Flat free
Size  11x4-5
Front anti-Scalp rollers  Yes, gauge wheels
Rear anti-scalp rollers  Yes, gauge wheels
Shipping weight
Mower deck (rear discharge)
Cutting width  62, 72 in.
   157, 183 cm
Cutting height  1-6 in.
   2.54-15.24 cm
Caster wheels  ---
Type  Flat free
Size  11x4-5
