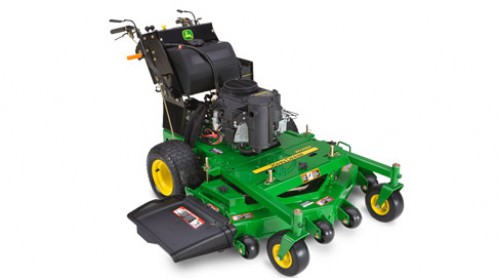

John Deere WH48A
John Deere WH48A for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.
Commercial Walk-Behind Mowers
- Heavy-duty, 5-speed gear transmission
- Pistol-grip controls within comfortable reach
- 48-inch, 7-gauge fabricated fixed mower deck
| Manufacturer | John Deere |
| Model | WH48A (2016) |
| Engine | |
| Manufacturer | --- |
| Model Number | FS600V |
| Horsepower | 18.5 hp |
| 13.8 kW | |
| Displacement | 36.8 cu in. |
| 603 cc | |
| Cylinders | Two |
| Crankcase Capacity | With filter 1.8 U.S. qt |
| 1.7 L | |
| Operating Speed | 3600 rpm |
| Idle Speed | 1550 rpm |
| Ignition/Starter | Electronic/electric start |
| Valving | Overhead valves |
| Oil Filter | Standard |
| Lubrication | Full pressure |
| Governor | Flyweight all speed governor |
| Hourmeter | Standard |
| Cooling System | Air cooled |
| Air Cleaner | Dual element |
| Muffler | Low tone |
| Fuel System | |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 5.8 U.S. gal. |
| 21.9 L | |
| Fuel Pump | Pulse |
| Fuel Delivery System | Carburetor |
| Fuel Tank Switch/Shut Off Valve | Shut off valve |
| Filler Neck Opening | --- |
| Fuel Pickup | Top draw |
| Electrical System | |
| Ignition | Electronic spark |
| Hourmeter | Standard, digital |
| Operator Presense Starting System | Standard |
| Drive Train | |
| Transmission | Hydrostatic, twin loop control type, Hydro-Gear pumps 10 cc |
| Wheel Motors | Parker-Ross™ |
| Shift Mechanism | --- |
| Tires | |
| Drive Wheels | 16x7.5-8 |
| Outside to Outside Tire Measurement | 41.25 in. |
| 104.8 cm | |
| Caster Wheels | 9x3.5-4 flat free |
| Shift Mechanism | --- |
| Travel Speed | |
| Forward Speeds | --- |
| Reverse Speeds | --- |
| Speed Range | Forward up to 7 mph |
| 11.3 km/h | |
| Reverse up to 3 mph | |
| 4.8 km/h | |
| Brakes | |
| Type | Mechanical lever to engage brakes |
| Dimensions | |
| Height | 43 in. |
| 109.2 cm | |
| Length with Deck | 75 in. |
| 191 cm | |
| Width | With with deflector, 60.8 in. |
| 154.4 cm | |
| Weight | 670 lb |
| 303.9 kg | |
| Mower Decks | |
| 36-in. Deck | --- |
| Material | --- |
| Blades | --- |
| Blade Drive | --- |
| Blade Tip Speed | --- |
| Cutting Height | --- |
| Width (chute up) | --- |
| Weight | --- |
| 48-in. Deck | Floating style 48 in. |
| 122 cm | |
| Material | Fabricated steel, 7 gauge |
| 0.18 in. | |
| 4.6 mm | |
| Blades | Three |
| Blade Drive | V-Belt |
| Blade Tip Speed | Approximately 18,000 fpm |
| 5486 m/min | |
| Cutting Height | 1.5-5 in. in. |
| 3.8-12.7 cm | |
| Width (chute up) | 48.5 in. |
| 123.2 cm | |
| Weight | --- |
| 54-in. Deck | --- |
| Material | --- |
| Blades | --- |
| Blade Drive | --- |
| Blade Tip Speed | --- |
| Cutting Height | --- |
| Width (chute up) | --- |
| Weight | --- |
| Miscellaneous Information | |
| Warranty | 24 month, single source commercial |
