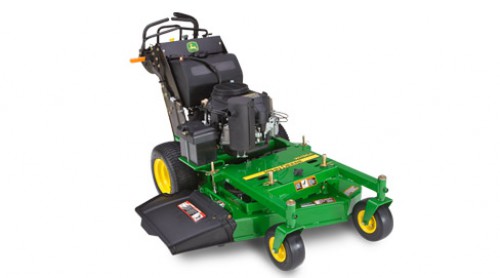

John Deere WH36A

John Deere WH36A for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Commercial Walk-Behind Mowers


  • Heavy-duty hydrostatic transmission
  • Forward speed up to 7 mph and 3 mph in reverse
  • 36-inch 7-gauge fabricated mower deck
Manufacturer John Deere
Model WH36A (2016)
Manufacturer  ---
Model Number  FS481V
Horsepower  14.5 hp
   10.8 kW
Displacement  36.8 cu in.
   603 cc
Cylinders  Two
Crankcase Capacity  1.8 U.S. qt
   1.7 L
Operating Speed  3600 rpm
Idle Speed  1550 rpm
Ignition/Starter  Electronic/electric start
Valving  Overhead valves
Oil Filter  Standard
Lubrication  Full pressure
Governor  Flyweight all speed governor
Hourmeter  Standard
Cooling System  Air cooled
Air Cleaner  Dual element
Muffler  Low tone
Fuel System
Fuel Type  Gasoline
Fuel Tank Capacity  5.8 U.S. gal.
   21.9 L
Fuel Pump  Pulse
Fuel Delivery System  Carburetor
Fuel Tank Switch/Shut Off Valve  Shut off valve
Filler Neck Opening  ---
Fuel Pickup  Top draw
Electrical System
Ignition  Electronic spark
Hourmeter  Standard, digital
Operator Presense Starting System  Standard
Drive Train
Transmission  Hydrostatic, twin loop control type, Hydro-Gear pumps 10 cc
Wheel Motors  Parker-Ross™
Shift Mechanism  ---
Drive Wheels  16x6.5-8
Outside to Outside Tire Measurement  35 in.
   89 cm
Caster Wheels  9x3.5-4, flat free
Shift Mechanism  ---
Travel Speed
Forward Speeds  ---
Reverse Speeds  ---
Speed Range  Forward up to 7 mph
   11.3 km/h
   Reverse up to 3 mph
   4.8 km/h
Type  Mechanical lever to engage brake
Height  43 in.
   109.2 cm
Length with Deck  74.5 in.
   189.2 cm
Width  With deflector 48.4 in.
   122.9 cm
Weight  558 lb
   253.1 kg
Mower Decks
36-in. Deck  Floating style 36 in.
   91.4 cm
Material  Fabricated steel, 7 gauge, 0.18 gauge
   0.18 in.
   4.6 mm
Blades  Two
Blade Drive  V-belt
Blade Tip Speed  Approximately 18,000 fpm
   5486 m/min
Cutting Height  1.5-5 in.
   3.8-12.7 cm
Width (chute up)  36.5 in.
   92.7 cm
Weight  ---
48-in. Deck  ---
Material  ---
Blades  ---
Blade Drive  ---
Blade Tip Speed  ---
Cutting Height  ---
Width (chute up)  ---
Weight  ---
54-in. Deck  ---
Material  ---
Blades  ---
Blade Drive  ---
Blade Tip Speed  ---
Cutting Height  ---
Width (chute up)  ---
Weight  ---
Miscellaneous Information
Warranty  24 month, single source commercial
