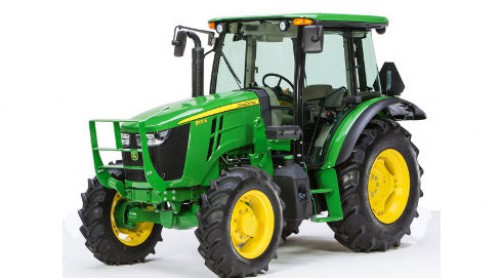

John Deere 5100E

John Deere 5100E for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

5E Series (85-100 hp)


  • John Deere PowerTech™ Diesel Engine with FT4 emissions compliance
  • Cab or open operator station available
  • Standard 12F/12R PowrReverser™ Transmission and MFWD
  • 540/540 Economy PTO
Manufacturer John Deere
Model 5100E (2016)
Official Test
Nebraska Test number  Not available at this time
Manufacturer  John Deere PowerTech 4045
Engine family  FJDXL04.5305
Aspiration  Turbocharged
Cylinders/Displacement, cu. in. (L)  4 / 4.5 L
   4 / 276 cu in.
Cylinder Liners  Wet sleeved
Fuel tank capacity, US Gal. (L) (Open; Cab)  ---
Standard  Open: 114 ; Cab: 114 L
   Open: 30 ; Cab: 30 U.S. gal.
Optional  ---
Underhood muffler  Yes
Advertised PTO hp (kW) @ Rated rpm  63.4 @ 2400 per SAE kW
   85 @ 2400 per SAE hp
Official PTO hp (kW) @ Rated rpm  ---
@ Standard PTO @ Eng rpm  ---
Maximum @ Eng rpm  ---
Advertised Engine hp (kW) @ Rated speed  74.6 @ 2400 per ISO 97/68/EC kW
   100 @ 2400 per ISO 97/68/EC hp
Max Unballast Drwbr hp (kW) @ Eng rpm  ---
Maximum Torque (PTO) @ rpm, lb-ft (Nm)  ---
Max Torque Rise (80% rtd spd) @ Eng rpm  20.3% @ 1900 RPM (80% rated speed)
   27.2% @ 1600 RPM (peak torque)
Maximum Torque Rise % (PTO) @ Eng rpm  ---
Fuel Use, U.S. gal./hr & hp hr/gal. at:
PTO @ Rated Eng rpm  ---
Standard PTO Speed @ Eng speed  ---
Maximum PTO Power @ Eng rpm  ---
Maximum Engine Power @ Eng rpm  ---
Max Unballasted Drawbar Power @ Eng rpm  ---
75% Load, Full Engine rpm (Unballasted)  ---
75% Load @ Reduced rpm (Unballasted)  ---
Std. Transmission; Forward/Reverse  12F/12R PowrReverser
Opt. Transmission; Forward/Reverse  24F/12R PowrReverser
Reverser  Yes
On-the-Go Shifting (Yes/No/Partial)  Partial
Clutch; Wet/Dry  Wet
Creeper  Not available
Power Take-Off (PTO)
Standard  540/540E
Optional  540/1000
PTO Speeds @ Engine rpm  540 @ 2400; 540E @ 1716; 1000 @ 2400 rpm
PTO Actuation  Electrohydraulic
Type  Open center
Pump Rated Output, GPM (L/min.)  ---
Standard  85.1 L/min
   22.5 gpm
Optional  ---
Rated Flow @ One SCV, GPM (L/min.)  60.1 L/min
   15.9 gpm
Max Output @ SCV Couplers, GPM (L/min.)  ---
Maximum Operating Pressure, psi (kPa)  20,000 kPa
   2900 psi
Maximum Hydraulic Power, hp (kW)  20.1 (for a single SCV) kW
   26.9 (for a single SCV) hp
Hitch Draft Control Load Sense Type  Mechanical
Remote Control Valves Available  Rear SCV - Less, Dual Standard, or Triple Deluxe; Mid SCV - Less, Dual Standard, or Triple Standard (field installed)
Hitch Category (SAE Designation)  Category 2
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt.  ---
OECD  ---
Standard  1457 kg
   3213 lb
Optional  ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE)  ---
Standard  ---
Optional  ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE)  ---
Standard  ---
Optional  ---
Sensing type  Top link
Joystick SCV control  Optional
Final Drive
Type  Inboard planetary
Differential controls  Mechanical (pedal)
Availability  ---
Front  No
Front & Rear  No
Engage On-the-Go Rear Differential Lock  Yes
Axle Type  Flanged
Brakes, Type and Control  Hydraulic wet disc
Operator Station
Rollover Protective Structure, OOS  ---
Rigid - Foldable - Telescopic  Foldable, 2-post
Platform - Flat/Straddle  Straddle
Gearshift Location - Console/Floor  Floor
Cab  ---
Doors  1; left-hand door standard, right-hand door optional
Platform - Flat/Straddle  Flat
dB(A) Rating  79 dBA
Seat Suspension System  Mechanical (standard)
   Air (optional)
2WD Dimensions
Wheelbase, in. (mm)  ---
Front Tread Range, in. (mm)  ---
Rear Tread Range, in. (mm)  ---
Minimum Rear Tread Setting, in. (mm)  ---
Front Axle Clearance, in. (mm)  ---
Turning Radius w/Brakes, ft (m)  ---
Turning Radius w/o Brakes, ft (m)  ---
Unballasted Operating Weight, lb (kg)  ---
Approx. Ship Wgt, lb (kg) Open; Cab  ---
MFWD Dimensions
Wheelbase, in. (mm)  2350 mm
   92.5 in.
Front Tread Range, in. (mm)  1340 - 1904 mm
   52.8 - 75.0 in.
Front Axle Clearance, in. (mm)  386 mm
   15.2 in.
Turning Radius w/Brakes, ft (m)  3.54 m
   11.6 ft
Turning Radius w/o Brakes, ft (m)  4.36 m
   14.3 ft
Limited Slip Differential  Yes
Unballasted Operating Weight, lb (kg)  ---
Approx. Ship Wgt, lb (kg) Open; Cab  3300; 3700 kg
   7275; 8150 lb
4WD Dimensions
Wheelbase, in. (mm)  ---
Wheel Tread, Min. to Max. in. (mm)  ---
Turning Radius w/o Brakes, ft (m)  ---
Nebraska Test Unballasted w/Duals, lb (kg)  ---
Unballasted Weight, lb (kg)  ---
Standard Tires
2WD  ---
Front  ---
Rear  ---
MFWD  ---
Front  12.4-24 R1 Bias
Rear  18.4-30 R1 Bias
4WD  ---
Track widths  ---
Country of Manufacture  Augusta, GA (USA)
Ballasting Restrictions, lb (kg)  5,325 for loader work; 4400 for field work kg
 11,725 for loader work; 9700 for field work lb
 Max ballast for field work is limited to 4400 kg
  5325 kg max ballast applies to H260 loader only
*Notes  Updated 4/8/2013
