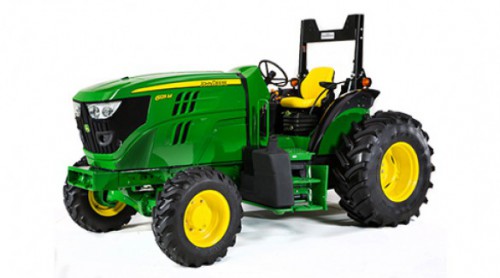

6105M
- Low-profile design perfect for orchards, nurseries, vineyards and other hard-to-reach areas
- Folding ROPS and rear lights
- PowrQuadTM transmission with left hand shuttle-shift control
- Horizontal exhaust
| Manufacturer | John Deere |
| Model | 6105M |
| Official Test | |
| Nebraska Test number | Nebraska OECD Tractor Test 2076 - Summary 892 |
| Engine | |
| Manufacturer | John Deere 4.5L PowerTech PVX |
| Engine family | --- |
| Aspiration | Variable Geometry Turbocharger with Intercooler and Cooled Exhaust Gas |
| Cylinders/Displacement, cu. in. (L) | 4.5 L |
| 4/276 cu in. | |
| Cylinder Liners | Wet |
| Fuel tank capacity, US Gal. (L) (Open; Cab) | --- |
| Standard | 58 (220) |
| Optional | N/A |
| Underhood muffler | Yes |
| Performance | |
| Advertised PTO hp (kW) @ Rated rpm | 64 @ 2100 per SAE kW |
| 86 @ 2100 per SAE PTO hp | |
| Official PTO hp (kW) @ Rated rpm | 65.49 @ 2101 per SAE kW |
| 87.83 @ 2101 per SAE PTO hp | |
| @ Standard PTO @ Eng rpm | 96.86 (72.23) @ 1962 per SAE rpm |
| Maximum @ Eng rpm | 99.07 (73.87) @ 1852 per SAE rpm |
| Advertised Engine hp (kW) @ Rated speed | 78 @ 2100 per ISO 97/68/EC kW |
| 105 @ 2100 per ISO 97/68/EC hp | |
| Max Unballast Drwbr hp (kW) @ Eng rpm | 67.30 @ 1850 per SAE kW |
| 90.25 @ 1850 per SAE hp | |
| Maximum Torque (PTO) @ rpm, lb-ft (Nm) | 452 @ 1401 Nm |
| 333 @ 1401 lb-ft | |
| Max Torque Rise (80% rtd spd) @ Eng rpm | 38.0% @ 1681 rpm |
| Maximum Torque Rise % (PTO) @ Eng rpm | 51.7% @ 1401 rpm |
| Fuel Use, U.S. gal./hr & hp hr/gal. at: | |
| PTO @ Rated Eng rpm | 21.37 hp hr/gal. & 15.56 hp hr/gal. @ 2101 |
| 5.65 & 15.56 @ 2101 U.S. gal./hr | |
| Standard PTO Speed @ Eng speed | 21.93 hp hr/gal. & 3.29 hp hr/gal. @ 1962 |
| 5.79 & 16.72 @ 1962 U.S. gal./hr | |
| Maximum PTO Power @ Eng rpm | 21.99 hp hr/gal. & 3.36 hp hr/gal. @ 1852 |
| 5.81 & 17.05 @ 1852 U.S. gal./hr | |
| Maximum Engine Power @ Eng rpm | 21.50 hp hr/gal. & 2.85 hp hr/gal. @ 2100 |
| 5.68 & 14.45 @ 2100 U.S. gal./hr | |
| Max Unballasted Drawbar Power @ Eng rpm | 22.10 hp hr/gal. & 3.05 hp hr/gal. @ 1850 |
| 5.83 & 15.47 @ 1850 U.S. gal./hr | |
| 75% Load, Full Engine rpm (Unballasted) | 18.85 hp hr/gal. & 2.56 hp hr/gal. @ 2194 |
| 4.98 & 13.00 @ 2194 U.S. gal./hr | |
| 75% Load @ Reduced rpm (Unballasted) | 16.80 hp hr/gal. & 2.88 hp hr/gal. @ 1601 |
| 4.44 & 14.61 @ 1601 U.S. gal./hr | |
| Transmission | |
| Std. Transmission; Forward/Reverse | PowrQuad PLUS 40K; 24F/24R (OOS - SyncroPlus 30K; 12F/4R) |
| Opt. Transmission; Forward/Reverse | PowrQuad PLUS 30K; 16F/16R -- AutoQuad PLUS 40K; 24F/24R (OOS - PowrQuad 30K; 16F/16R -- PowrQuad 40K; 24F/24R) |
| Reverser | Base LH |
| On-the-Go Shifting (Yes/No/Partial) | Yes |
| Clutch; Wet/Dry | Wet |
| Creeper | Yes |
| Power Take-Off (PTO) | |
| Standard | Independent 540/1000 RPM, 1 3/8 in. |
| Optional | Independent 540 RPM |
| PTO Speeds @ Engine rpm | 540 @ 1967 or 1000 @ 1962 |
| PTO Actuation | Electrohydraulic |
| Hydraulics | |
| Type | Pressure Compensated (PC) System with Load Sensing Function |
| Pump Rated Output, GPM (L/min.) | --- |
| Standard | 21.1 (80) |
| Optional | 30 (114) |
| Rated Flow @ One SCV, GPM (L/min.) | 83.8 L/min Std. 45 cc Pump; 115.3 L/min Opt. 60 cc Pump L/min |
| 22.1 U.S. gpm Std. 45 cc Pump; 30.5 U.S. gpm Opt. 60 cc Pump gpm | |
| Max Output @ SCV Couplers, GPM (L/min.) | 84.0 L/min Std. 45 cc Pump; 115.6 L/min Opt. 60 cc pump L/min |
| 22.2 U.S. gpm Std. 45 cc Pump; 30.5 U.S. gpm Opt. 60 cc pump gpm | |
| Maximum Operating Pressure, psi (kPa) | 20000 kPa |
| 2900 psi | |
| Maximum Hydraulic Power, hp (kW) | 25.9 Std. Pump and 33.8 Opt. Pump kW |
| 34.8 Std. Pump and 45.4 Opt. Pump hp | |
| Hitch Draft Control Load Sense Type | Electrohydraulic |
| Remote Control Valves Available | Up to 4 rear mechanical or 3 with power beyond, 3 mid-mount mechanical |
| Hitch Category (SAE Designation) | Category 3N/2 |
| Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. | --- |
| OECD | --- |
| Standard | 2131.21 - 2 x 70 mm lift cylinders per NE Test kg |
| 4689 - 2 x 70 mm lift cylinders per NE Test lb | |
| Optional | 2794.02 - 2 x 80 mm lift cylinders per NE Test kg |
| 6152 - 2 x 80 mm lift cylinders per NE Test lb | |
| Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE) | --- |
| Standard | Refer to Operator's Manual |
| Optional | Refer to Operator's Manual |
| Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE) | --- |
| Standard | Refer to Operator's Manual |
| Optional | Refer to Operator's Manual |
| Sensing type | Electronic Lower Link |
| Joystick SCV control | Mechanical |
| Final Drive | |
| Type | Inboard planetary three pinion |
| Differential controls | Electrohydraulic |
| Availability | --- |
| Front | Yes |
| Front & Rear | Yes |
| Engage On-the-Go Rear Differential Lock | Yes |
| Axle Type | Flange/Rack and pinion |
| Brakes, Type and Control | Hydraulic actuated oil cooled |
| Operator Station | |
| Rollover Protective Structure, OOS | Yes |
| Rigid - Foldable - Telescopic | N/A |
| Platform - Flat/Straddle | Yes |
| Gearshift Location - Console/Floor | Transmission specific |
| Cab | --- |
| Doors | 2 |
| Platform - Flat/Straddle | N/A |
| dB(A) Rating | 66.6 dBA |
| Seat Suspension System | Mechanical and Air Suspended |
| 2WD Dimensions | |
| Wheelbase, in. (mm) | 2580 mm |
| 101.6 in. | |
| Front Tread Range, in. (mm) | TBD |
| Rear Tread Range, in. (mm) | TBD |
| Minimum Rear Tread Setting, in. (mm) | TBD |
| Front Axle Clearance, in. (mm) | TBD |
| Turning Radius w/Brakes, ft (m) | TBD |
| Turning Radius w/o Brakes, ft (m) | TBD |
| Unballasted Operating Weight, lb (kg) | TBD |
| Approx. Ship Wgt, lb (kg) Open; Cab | TBD |
| MFWD Dimensions | |
| Wheelbase, in. (mm) | 2580 mm |
| 101.6 in. | |
| Front Tread Range, in. (mm) | 2015 mm |
| 79.3 in. | |
| Front Axle Clearance, in. (mm) | 520 mm |
| 20.47 in. | |
| Turning Radius w/Brakes, ft (m) | Per tire size required, utilize Turn Radius Calculator Tool located in ASM |
| Turning Radius w/o Brakes, ft (m) | Per Tire Size required, utilize Turn Radius Calculator Tool located in ASM |
| Limited Slip Differential | 30-45 % |
| Unballasted Operating Weight, lb (kg) | --- |
| Approx. Ship Wgt, lb (kg) Open; Cab | 5008 kg |
| 11040 lb | |
| 4WD Dimensions | |
| Wheelbase, in. (mm) | N/A |
| Wheel Tread, Min. to Max. in. (mm) | N/A |
| Turning Radius w/o Brakes, ft (m) | N/A |
| Nebraska Test Unballasted w/Duals, lb (kg) | N/A |
| Unballasted Weight, lb (kg) | N/A |
| Standard Tires | |
| 2WD | --- |
| Front | 10.00-16 in. 10PR F2 Bias |
| Rear | 460/85R34 in. 147A8 R1W Radial |
| MFWD | --- |
| Front | 380/85R24 in. 131A8 R1W Radial |
| Rear | 460/85R34 in. 147 A8 R1W Radial |
| 4WD | --- |
| Track widths | N/A |
| Miscellaneous | |
| Country of Manufacture | Mannheim, Germany |
| Ballasting Restrictions, lb (kg) | Refer to Operator's Manual |
| *Notes | Updated - 03/28/2014 |
