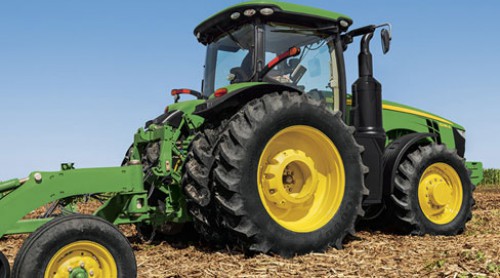

John Deere 8345R

John Deere 8345R for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

8R/8RT Series


  • 345 Engine hp
  • John Deere PowerTech™ 9.0L PSS
  • Choice of 16-speed PowerShift, e23™ PowerShift, or Infinitely Variable Transmission (IVT™)
  • MFWD, or Independent Link Suspension (ILS™)
Manufacturer John Deere
Model 8345R (MY2014)
Nebraska Test number TBD Nebraska Test
Manufacturer John Deere
Engine family 9.0L: EJDXL09.0301
Aspiration Dual turbochargers, variable geometry turbo with fixed geometry turbo in series
Cylinders/Displacement, cu. in. (L) 6 / 9.0 L
  549 cu in.
Cylinder Liners Wet
Fuel tank capacity, US Gal. (L) (Open; Cab) ---
Standard G47/48 tires: 170.4 (645), with G49 tires: 181.2 (686)
Optional ---
Underhood muffler ---
Advertised PTO hp (kW) @ Rated rpm 291 @ 2100 per SAE PTO hp
  216 kW
Official PTO hp (kW) @ Rated rpm ---
@ Standard PTO @ Eng rpm ---
Maximum @ Eng rpm ---
Advertised Engine hp (kW) @ Rated speed 345 @ 2100 per 97/68EC PS engine hp
  254 kW
Max Unballast Drwbr hp (kW) @ Eng rpm ---
Maximum Torque (PTO) @ rpm, lb-ft (Nm) ---
Max Torque Rise (80% rtd spd) @ Eng rpm ---
Maximum Torque Rise % (PTO) @ Eng rpm ---
PTO @ Rated Eng rpm ---
Standard PTO Speed @ Eng speed ---
Maximum PTO Power @ Eng rpm ---
Maximum Engine Power @ Eng rpm ---
Max Unballasted Drawbar Power @ Eng rpm ---
75% Load, Full Engine rpm (Unballasted) ---
75% Load @ Reduced rpm (Unballasted) ---
Std. Transmission; Forward/Reverse IVT
Opt. Transmission; Forward/Reverse IVT
Reverser Left-hand or Right-hand
On-the-Go Shifting (Yes/No/Partial) Yes
Clutch; Wet/Dry Wet
Creeper IVT
Standard 1-3/4 in., 20-spline, 1,000-rpm
Optional 1-3/4-in., 20-spline, 1,000-rpm with 1000/1000E rpm gearcase, Electronically shiftable in cab
  1-3/4-in., 20-spline, 1,000-rpm capable of 1-3/8 in. 540/1000 rpm gearcase
PTO Speeds @ Engine rpm 1000 PTO rpm @ 2000 engine rpm
PTO Actuation Electro-hydraulic
Type Closed-center, pressure/flow compensated
Pump Rated Output, GPM (L/min.) ---
Standard 60 gpm
  227.1 L/min
Optional 85 gpm
  321 L/min
Rated Flow @ One SCV, GPM (L/min.) 25, 35, 40.5 gpm
  96, 132 1/2 in. coupler L/min
  153 3/4 in. coupler L/min
Max Output @ SCV Couplers, GPM (L/min.) ---
Maximum Operating Pressure, psi (kPa) 2958 psi
  20,400 + or- 300 kPa
Maximum Hydraulic Power, hp (kW) ---
Hitch Draft Control Load Sense Type Electronic
Remote Control Valves Available 4 (Standard), 5, 6
  2 Front SCV option
Hitch Category (SAE Designation) Cat 3/3N
  Cat 4N/3 (optional)
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. ---
OECD ---
Standard 18700 Cat 4N/3 lb
  8482 Cat 4N/3 kg
Optional 14100 Cat 3/3N lb
  6396 Cat 3/3N kg
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE) ---
Standard ---
Optional ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE) ---
Standard ---
Optional ---
Sensing type Electro-hydraulic
Joystick SCV control Electro-hydraulic optional
Type Inboard planetary
Differential controls Electro-hydraulic
Availability Yes
Front Yes
Front & Rear Yes
Engage On-the-Go Rear Differential Lock Yes
Axle Type Bar axle, rack and pinion
Brakes, Type and Control Hydraulic wet disc
Rollover Protective Structure, OOS ---
Rigid - Foldable - Telescopic ---
Platform - Flat/Straddle ---
Gearshift Location - Console/Floor CommandARM
Cab ---
Doors LH
Platform - Flat/Straddle Flat
dB(A) Rating ---
Seat Suspension System Air std.
  Active Seat (optional)
  Cab suspension with Air Seat (optional)
Wheelbase, in. (mm) ---
Front Tread Range, in. (mm) ---
Rear Tread Range, in. (mm) ---
Minimum Rear Tread Setting, in. (mm) ---
Front Axle Clearance, in. (mm) ---
Turning Radius w/Brakes, ft (m) ---
Turning Radius w/o Brakes, ft (m) ---
Unballasted Operating Weight, lb (kg) ---
Approx. Ship Wgt, lb (kg) Open; Cab ---
Wheelbase, in. (mm) 121.3 MFWD, 120.1 ILS in.
  3080 MFWD, 3050 ILS mm
Front Tread Range, in. (mm) 60-144 1500 MFWD/ILS in.
  1524-3657 1500 MFWD/ILS mm
Front Axle Clearance, in. (mm) 27 MFWD; 23.2 ILS in.
  686 MFWD; 590 ILS mm
Turning Radius w/Brakes, ft (m) ---
Turning Radius w/o Brakes, ft (m) ---
Limited Slip Differential hydraulic lock differential
Unballasted Operating Weight, lb (kg) ---
Approx. Ship Wgt, lb (kg) Open; Cab 32691 (14828) ILS/IVT/1378 lb inner weights/front weight support/Cat4 hitch with QC/30 gal fuel/480/80R50 duals/420/85R34 front duals
Wheelbase, in. (mm) ---
Wheel Tread, Min. to Max. in. (mm) ---
Turning Radius w/o Brakes, ft (m) ---
Nebraska Test Unballasted w/Duals, lb (kg) ---
Unballasted Weight, lb (kg) ---
2WD ---
Front ---
Rear ---
MFWD ---
Front 420/85R34
Rear 480/80R50
4WD ---
Track widths ---
Country of Manufacture Waterloo, IA USA
Ballasting Restrictions, lb (kg) Refer to operator's manual
*Notes ---
