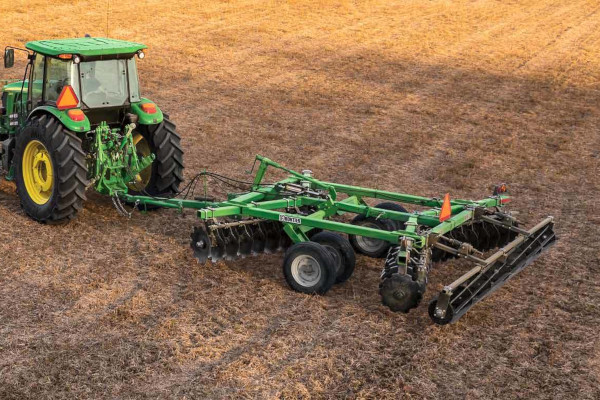

John Deere DH1613

DH1613 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Double tap to zoom



Features

  • Two-blade taper furrow filler
  • Disk leveling adjustable
  • Middle breaker cuts out center bulk
  • Hydraulic controls raise and lower the disk
  • Optional rolling basket for improved field conditions
  • Disk gangs adjust to match soil conditions
  • Notched or spherical blades

Specifications

Dimensions

Working width 3.2 m
10.6 ft

Weight

Operating 1898-2200 kg
4185-4851 lb
Shipping 1989-2291 kg
4385-5051 lb

Tractor requirements

Horsepower range 45-60 kW
60-80 hp

Hitch

Type Level lift drawn with clevis

Blade

Spacing Front
22.9 cm
9 in.
Rear
22.9 cm
9 in.
22.9 cm
9 in.
Size 56 cm
22 in.
Thickness 4.5 mm
0.177 in.
Quantity 28
Type Notched (front) / Notched (rear)
Available
Smooth (front) / Smooth (rear)
Standard
Notched (front) / Smooth (rear)
Available
Weight per blade: 68-76 kg
149-173 lb

Gang axle

Diameter 38 mm
1.5 in.
Type Square
Material C1045

Gang angles

Front 5, 8, 9, 11, 13, 14, 16, 18, 19, 22, 25 degree (angle)
Rear 5, 8, 10, 12, 13, 14, 16, 17, 19, 20, 21, 24 degree (angle)

Tubing

Frame 101.6x101.6x6.4 and 152.4x101.6x6.4 mm
4x4x0.25 and 6x4x0.25 in.
Gang 101.6x101.6x6.4 mm
4x4x0.25 in.

Bearing hanger

Material Steel (Rigid Standard - C-Spring Optional)
Size 50.8x101.6
2x4 in.
U-bolt size 19.1 mm
0.75 in.
Bearing type Lubricated ball bearings

Depth control

Type Pin adjust, center mount

Lighting and safety

Transport lights Standard
Safety chain Standard
Jack Standard

Hydraulics

Cylinder size 10.1x20.3 cm
4x8 in.
Hose length 406 cm
160 in.

Tires

Type Pneumatic
Size Dual 9.5L-15 6 ply

Set-up time

Labor hours 4

Warranty

Time period 1 year
