John Deere DH1612

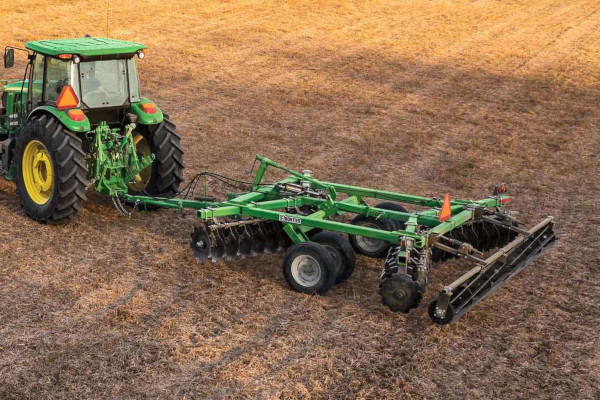

Frontier™ Disks DH1612
Overview:
When it’s time to work your land, Frontier Disks are built to handle a variety of unpredictable soil conditions.
· Notched or spherical blades available for aggressive or smooth cutting
· Adjustable front-to-rear leveling
Share This Product:
Features
- Two-blade taper furrow filler
- Disk leveling adjustable
- Middle breaker cuts out center bulk
- Hydraulic controls raise and lower the disk
- Optional rolling basket for improved field conditions
- Disk gangs adjust to match soil conditions
- Notched or spherical blades
Specifications
Dimensions
| Working width | 3.2 m 10.6 ft |
Weight
| Operating | 1898-2200 kg 4185-4851 lb |
| Shipping | 1989-2291 kg 4385-5051 lb |
Tractor requirements
| Horsepower range | 45-60 kW 60-80 hp |
Hitch
| Type | Level lift drawn with clevis |
Blade
| Spacing | Front 22.9 cm 9 in. Rear 22.9 cm 9 in. 22.9 cm 9 in. |
| Size | 56 cm 22 in. |
| Thickness | 4.5 mm 0.177 in. |
| Quantity | 28 |
| Type | Notched (front) / Notched (rear) Available Smooth (front) / Smooth (rear) Standard Notched (front) / Smooth (rear) Available Weight per blade: 68-76 kg 149-173 lb |
Gang axle
| Diameter | 38 mm 1.5 in. |
| Type | Square |
| Material | C1045 |
Gang angles
| Front | 5, 8, 9, 11, 13, 14, 16, 18, 19, 22, 25 degree (angle) |
| Rear | 5, 8, 10, 12, 13, 14, 16, 17, 19, 20, 21, 24 degree (angle) |
Tubing
| Frame | 101.6x101.6x6.4 and 152.4x101.6x6.4 mm 4x4x0.25 and 6x4x0.25 in. |
| Gang | 101.6x101.6x6.4 mm 4x4x0.25 in. |
Bearing hanger
| Material | Steel (Rigid Standard - C-Spring Optional) |
| Size | 50.8x101.6 2x4 in. |
| U-bolt size | 19.1 mm 0.75 in. |
| Bearing type | Lubricated ball bearings |
Depth control
| Type | Pin adjust, center mount |
Lighting and safety
| Transport lights | Standard |
| Safety chain | Standard |
| Jack | Standard |
Hydraulics
| Cylinder size | 10.1x20.3 cm 4x8 in. |
| Hose length | 406 cm 160 in. |
Tires
| Type | Pneumatic |
| Size | Dual 9.5L-15 6 ply |
Set-up time
| Labor hours | 4 |
Warranty
| Time period | 1 year |
