John Deere DH1376

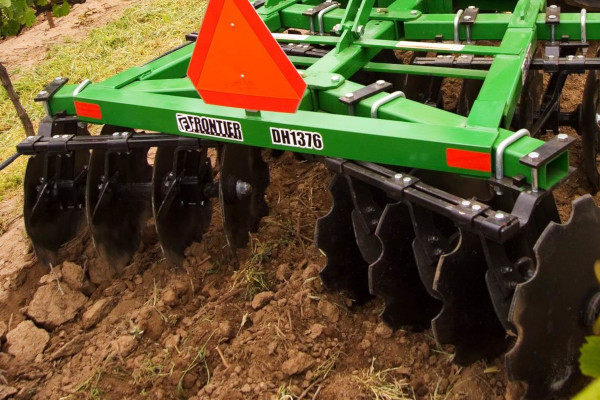

Frontier™ Disks DH1376
Overview:
When it’s time to work your land, Frontier Disks are built to handle a variety of unpredictable soil conditions.
· Notched or spherical blades available for aggressive or smooth cutting
· Adjustable front-to-rear leveling
Share This Product:
Features
- Optional rolling basket for improved field conditions
- Sealed bearings increase life and reduce maintenance
- Notched or spherical blades
- Easy-to-adjust disk gangs match changing soil conditions
- iMatch™ quick-hitch compatible for quick assembly
Specifications
Dimensions
| Working width | 1.9 m 6.33 ft |
Weight
| Operating | 503 kg 1,109 lb |
| Shipping | 557.5 kg 1,229 lb |
Tractor requirements
| Horsepower range | Max: 55.9 kW 75 hp |
Hitch
| Type | Integral |
| Category | Category 1 and Category 2 |
Blade
| Spacing | Front 22.9 cm 9 in. Rear 22.9 cm 9 in. |
| Size | 55.9 cm 22 in. |
| Thickness | 3.5 mm 0.1378 in. |
| Quantity | 16 |
| Type | Notched (front) / Notched (rear) Standard Smooth (front) / Smooth (rear) Available Notched (front) / Smooth (rear) Available |
Gang axle
| Diameter | 28.6 mm 1.125 in. |
| Type | Square |
| Material | C1045 |
Gang angles
| Front | 9, 12, 15, 18 degree (angle) |
| Rear | 9, 12, 15, 18 degree (angle) |
Tubing
| Frame | 101.6x76. x4.8 mm 4x3x0.1875 in. and 101.6x76.2x6.4 mm 4x3x0.25 in. |
| Gang | 101.6x76.2x4.8 mm 4x3x0.1875 in. |
Bearing hanger
| Material | Mounted steel tube |
| Size | 50.8x101.6 mm 2x4 in. |
| U-bolt size | 19.1 mm 0.75 in. |
| Bearing type | Self-aligning trunion mount, sealed ball bearings |
Set-up time
| Labor hours | 0.25 |
Warranty
| Time period | 1 year |
