John Deere DH1280

DH1280 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Double tap to zoom



Features

  • Optional rolling basket for improved field conditions
  • Sealed bearings increase life and reduce maintenance

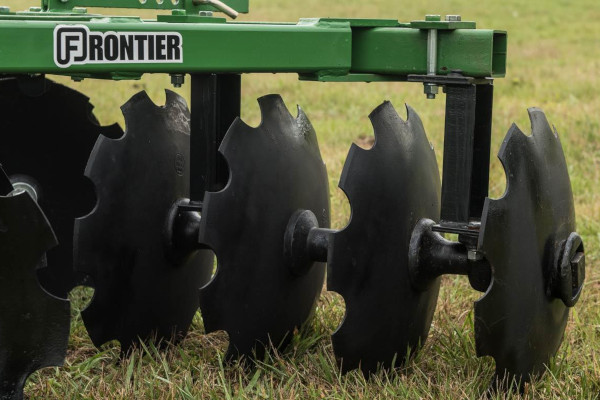

  • Notched or spherical blades
  • Easy-to-adjust disk gangs match changing soil conditions
  • iMatch™ quick-hitch compatible for quick assembly

Specifications

Dimensions

Working width 2.03 m
6.67 ft

Weight

Operating 333.4 kg
735 lb
Shipping 371.9 kg
820 lb

Tractor requirements

Horsepower range Max: 33.6 kW
45 hp

Hitch

Type Integral
Category Cat. 1

Blade

Spacing Front
19.1 cm
7.5 in.
Rear
19.1 cm
7.5 in.
Size 18 (45.7)
Thickness 3 Nm
0.1181 in.
Quantity 20
Type Notched (front) / Notched (rear)
Standard
Smooth (front) / Smooth (rear)
Available
Notched (front) / Smooth (rear)
Available

Gang axle

Diameter 25.4 mm
1 in.
Type Square
Material Steel

Gang angles

Front 2, 9, 13, 24 degree (angle)
Rear 5, 11, 20, 27 degree (angle)

Tubing

Frame 76.2x76.2x3 mm
3x3x0.1196 in.
and 76.2x76.2x4.8 mm
3x3x0.1875 in.
Gang 76.2x76.2x4.8 mm
3x3x0.1875 in.

Bearing hanger

Material Reinforced formed steel plate
Size 12.7 mm
0.5 in.
U-bolt size 15.9 mm
0.625 in.
Bearing type Self-aligning sealed ball bearing in pre-riveted flange

Set-up time

Labor hours 0.25

Warranty

Time period 1 year
