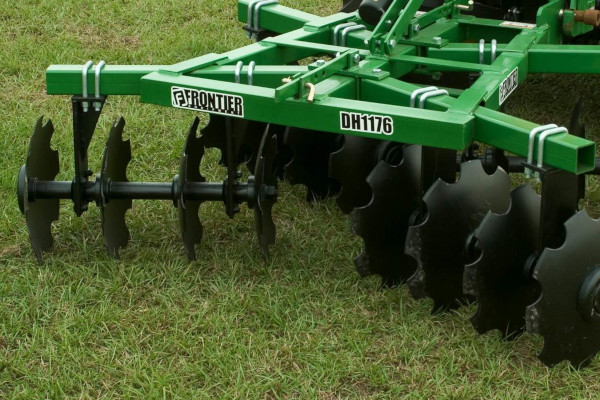

John Deere DH1176

DH1176 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Double tap to zoom



Features

  • Sealed bearings extend life and reduce maintenance
  • Notched or spherical Blades for cutting
  • Easy-to-adjust disk gangs
  • iMatch™ compatibility makes hookup fast and simple
  • Scraper field conversion kits for DH11 Series Disk Harrows

Specifications

Dimensions

Working width 1.7 cm
5.5 ft

Weight

Operating 299.4 kg
660 lb
Shipping 342.5 kg
755 lb

Tractor requirements

Horsepower range Max: 33.6 kW
45 hp

Hitch

Type Integral
Category Cat. 1

Blade

Spacing Front
19.1 cm
7.5 in.
Rear
19.1 cm
7.5 in.
Size 45.7 cm
18 in.
Thickness 3 mm
0.1181 in.
Quantity 16
Type Notched (front) / Notched (rear)
Standard
Smooth (front) / Smooth (rear)
Available
Notched (front) / Smooth (rear)
Available

Gang axle

Diameter 25.4 mm
1 in.
Type Square
Material Steel

Gang angles

Front 2, 9, 13, 24 degree (angle)
Rear 5, 11, 20, 27 degree (angle)

Tubing

Frame 76.2x76.2x3 mm
3x3x0.1196 in.
and 76.2x76.2x4.8 mm
3x3x0.1875 in.
Gang 76.2x76.2x4.8 mm
3x3x0.1875 in.

Bearing hanger

Material Reinforced formed steel plate
Size 12.7 mm
0.5 in.
U-bolt size 15.9 mm
0.625 in.
Bearing type Self-aligning sealed ball bearing in pre-riveted flange

Set-up time

Labor hours 0.25

Warranty

Time period 1 year
