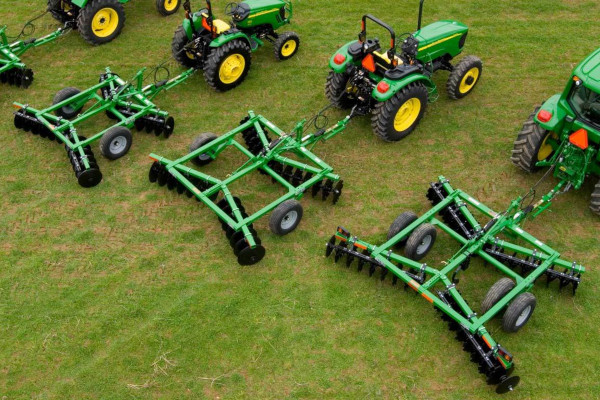

John Deere DH 1512

DH 1512 for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Double tap to zoom



Features

  • Disk gangs adjust to match soil conditions
  • Disk leveling adjustable with a crank
  • Hydraulic controls raise and lower the disk
  • Field-installed center sweep kit for disk harrows
  • Optional rolling basket for improved field conditions
  • Notched or spherical blades

Specifications

Dimensions

Working width 3.2 m
10.5 ft

Weight

Operating 1,124.9 kg
2,480 lb
or 1,190.2 kg
2,624 lb
Shipping 1,158.9 kg
2,555 lb
or 1,224.2 kg
2,699 lb

Tractor requirements

Horsepower range 33.6-55.9 kW
45-75 hp

Hitch

Type Level lift drawn with clevis

Blade

Spacing Front
19.1 cm
7.5 in.
Rear
19.1 cm
7.5 in.
Size 50.8 cm
20 in.
or 55.9 cm
22 in.
Thickness 3.5 mm
0.1378 in.
or 4 mm
0.1575 in.
Quantity 32
Type Notched (front) / Notched (rear)
Standard
Smooth (front) / Smooth (rear)
Available
Notched (front) / Smooth (rear)
Available

Gang axle

Diameter 28.6 mm
1.125 in.
Type Square
Material C1045

Gang angles

Front 9, 11, 12, 14, 15, 16, 19, 22, 25 degree (angle)
Rear 5, 8, 9, 11, 12, 14, 15, 17, 20, 23 degree (angle)

Tubing

Frame 101.6x76.2x4.8 mm
4x3x0.1875 in.
and 127x76.2x6.4 mm
5x3x0.25 in.
Gang 101.6x76.2x4.8 mm
4x3x0.1875 in.

Bearing hanger

Material Steel
Size 50.8x101.6 mm
2x4 in.
U-bolt size 19.1 mm
0.75 in.
Bearing type Self-aligning trunion mount, sealed or lubricated ball bearings

Depth control

Type Pin adjust, center mount

Lighting and safety

Safety chain Standard
Jack Standard

Hydraulics

Cylinder size 7.6x20.3 cm
3x8 in.
Hose length 381 cm
150 in.

Tires

Type Pneumatic
Size 9.5L-15 6 ply

Set-up time

Labor hours 2

Warranty

Time period 1 year
