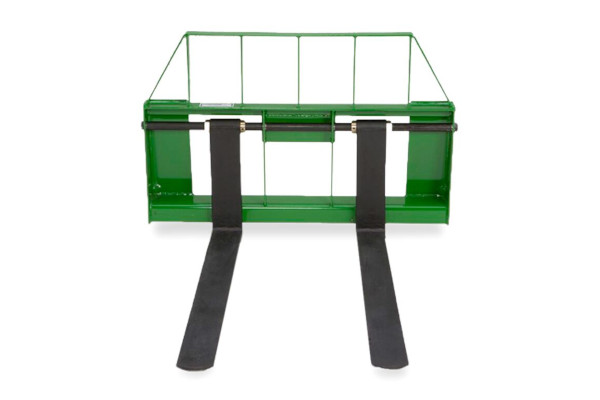

John Deere AP10F

Double tap to zoom



  • High tensile, heavy-gauge steel frame
  • Tines float while picking up and removing pallets on uneven terrain
  • Tines can be made rigid at any position using set screws


Model AP10 (F)
Description 36 in. (91.44 cm) Fixed Tine Pallet Fork
42 in. (106.68 cm) Fixed Tine Pallet Fork
Loader Series/Carrie 100 Series Loader



Overall height 62.2 cm
24.5 in.
Overall width 125.1 cm
49.25 in.
Overall length Length with 91.4-cm (36-in.) tines - 114.3 cm
45 in.
Length with 106.7-cm (42-in.) tines - 129.5 cm
51 in.

Attachment carrier

Current series style 100, 200


Operational With 36-inch tines: 77.1 kg
170 lb
With 42-inch tines: 89.8 kg
198 lb
Shipping With 36-inch tines: 97.1 kg
214 lb
With 42-inch tines: 109.8 kg
242 lb

Fork tines

Type Fixed
Capacity Capacity with 91.4-cm (36-in.) tines - 567 kg
1250 lb
Capacity with 106.7-cm (42-in.) tines - 567 kg
Section Section with 91.4-cm (36-in.) tines - 25.4 x 76.6 mm
1.0 x 3.0 in.
Section with 106.7-cm (42-in.) tines - 30 x 80 mm
1.18 x 3.13 in.
Length 91.4 and 106.7 cm
36 and 42 in.

Set-up time

Labor hours 0.25


Time period 1 year

Additional information

Date collected 1-August-2017
