John Deere AB11

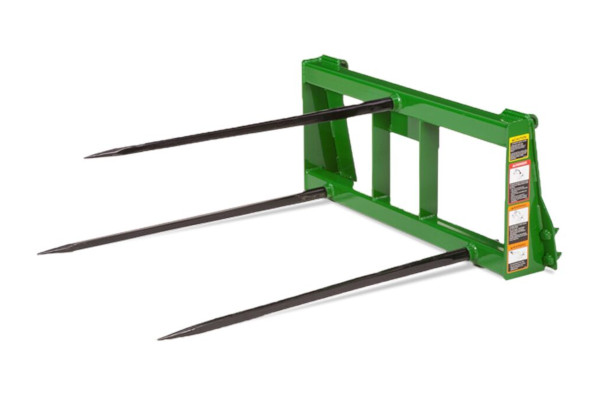

Frontier™ Bale Spears AB11
Overview:
Round or square, whatever the job, there is a Frontier Bale Spear up to the task. Choose from a wide range of single- and triple-tine models to move and stack bales quickly and easily.
Share This Product:
Features
- Quick and easy attachment
- Replaceable tines
- Rugged tubular frame enhances durability
| Model | AB11(D, E, and G) |
| Bale Handling Capacity | 1 Large Round Bale 2000 lb. (907.2 kg) |
| Loader Series/Carrier | 300, 400, 500, 600, and 700 Series Loader / Global Carrier |
Specifications
Dimensions
| Overall height | 50.8 cm 20 in. |
| Overall width | 116.8 cm 46 in. |
| Overall length | 137.2 cm 54 in. |
Attachment carrier
| Current series style | Global |
Weight
| Operational | 62.6 kg 138 lb |
| Shipping | 80.7 kg 178 lb |
Spears
| Primary | Location TopQuantity OneSize 5.1x124.5 cm 2x49 in. |
| Stabilizing | Location BottomQuantity OneSize 3.2x50.8 cm 1.25x20 in. |
Bale
| Round | Quantity OneSize Large roundMaximum weight 907.2 kg 2,000 lb |
Set-up time
| Labor hours | 0.25 |
Warranty
| Time period | 1 year |
