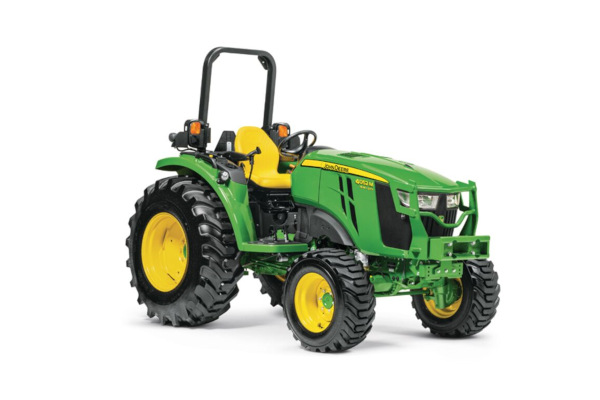

John Deere 4052M Heavy Duty

Double tap to zoom



Features

  • Increased versatility with Category 1 and 2 implement compatibility
  • Excellent visibility provided by standard lighting equipment
  • Maximize productivity with an eHydro™ transmission
  • Increase productivity with integrated mid-mount loader selective control valve (SCV) and single rear SCV
  • Powerful Yanmar® diesel engine delivers plenty of power under heavy loads
  • Improved traction in muddy conditions with larger tires

Specifications

Key Specs

Engine power (gross) 37.9 kW
51.5 hp
PS at 2600 rpm
SAE J1995 rated power
Power take-off (PTO) power eHydro™ transmission: 30.5 kW
40.9 hp
Per SAE J1995
Steering hydraulics 23.5 L/min
6.2 gpm
Implement hydraulics 42.3 L/min
11.2 gpm
Hitch type Category 1/Category 2
Lift capacity, 24-in. behind link arms 1135 kg
2500 lb
Standard transmission; forward/reverse eHydro transmission
Cruise control Standard
Approximate shipping weight (open-station; cab) Open station: 1943 kg
4255 lb
Cab: Not applicable
Wheelbase 185.5 cm
73 in.

Engine

Family EYDXL2.09TDA
FYDXL2.09TDA
GYDXL2.09TDA
Manufacturer Yanmar®
Engine model 4TNV86CT-MJT
Engine power (gross) 37.9 kW
51.5 hp
PS at 2600 rpm
SAE J1995 rated power
Power take-off (PTO) power eHydro™ transmission: 30.5 kW
40.9 hp
Per SAE J1995
Rated engine speed 2600 rpm
Type Diesel
Injection pump type High-pressure common rail direct injection
Aspiration Turbocharged
Emissions compliance Final Tier 4
Cylinders/displacement 4 cylinders
2.091 L
127.6 cu in.
Number of cylinders Four
Cylinder liners Cast-in-block
Bore and stroke 86 x 90 mm
3.4 x 3.54 in.
Compression ratio 19.1:1
Lubrication Pressurized
Cooling system Liquid
Air cleaner Dual element with electronic restriction indicator
Engine torque at rated speed 139 Nm
102.5 lb-ft
Fuel tank capacity 56.9 L
15 U.S. gal.

Electrical

Battery size 770 CCA
Alternator (12-V) 75 amp
Starter size 2 kW
2.68 hp

Fuel system

Type High pressure common rail direct injection

Transmission

Standard transmission; forward/reverse eHydro transmission
Transmission gear ranges eHydro - Infinitely-variable three range
Final drive Planetary
Brakes Multi-plate wet disc
Steering Hydrostatic power steering
Clutch, wet/dry Wet
Clutch disk diameter wet clutch 129 mm
5.08 in.
Axle capacity Front
1600 kg
3528 lb
Rear
2400 kg
5292 lb
Creeper SpeedMatch™ standard
Cruise control Standard
Differential lock Yes

Hydraulics

Type Open center
Pump rated output Steering
23.5 L/min
6.2 gpm
Implement
42.3 L/min
11.2 gpm
Pump type Single gear
Draft control sensing Position control
Remote control valves available Two remotes standard

3-point hitch

Type Category 1/Category 2
Lift capacity, 24-in. behind link arms 1135 kg
2500 lb

Power take-off (PTO)

Standard Independent 540 rpm at 2600 rpm
Optional 540E rpm
Control Independent
Clutch Wet disc

Fluid capacities

Crankcase with filter 5.3 L
1.4 qt
Transmission and hydraulic system 47.3 L
12.5 gal.

Final drive

Type Planetary
Differential lock Yes

Operator station

Rollover protective structure Type
Foldable
Yes
Platform - flat/straddle Flat

Dimensions

Wheelbase 185.5 cm
73 in.
Front axle clearance 35.1 cm
13.8 in.
Turning radius with brakes 2.8 m
9.19 ft
Turning radius without brakes 3 m
9.84 ft
Approximate shipping weight (open-station; cab) Open station: 1943 kg
4255 lb
Cab: Not applicable

Tires

Front R4 Industrial 31.5x13-16.5
Rear R4 Industrial 16.9-24
R4 Industrial 19.5L-24
Front tread range 1374.6 mm
54.1 in.
Rear tread spacing 1375 mm
54.1 in.
1495 mm
58.9 in.
