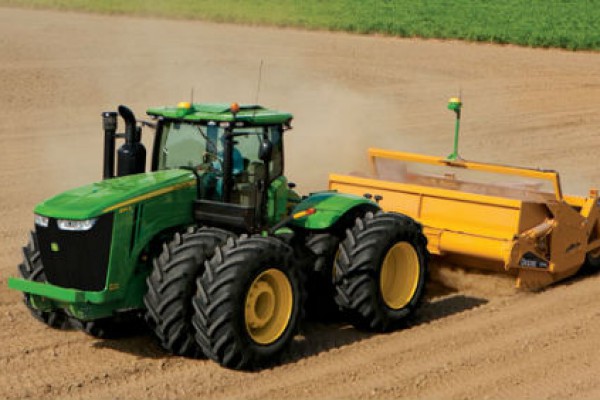

John Deere 9460R Scraper Special (Older) / NOT AVAILABLE

Double tap to zoom



Features

With up to 560 engine hp, up to 20,000-pound hitch-lift capacity, and up to 78 gpm hydraulic flow, the new 9R/9RT Series Tractors give you the power and the attitude to be the best at what you do — and that’s getting every job done faster than ever. What’s more, the refined PowerShift transmission with new Efficiency Manager™ will help you get it all done with less diesel. And the spacious CommandView™ II Cab offers the best in technology and comfort.

Specifications

Manufacturer John Deere
Model 9460R Scraper Special
Official Test
Nebraska Test number ---
Engine
Manufacturer John Deere
Aspiration Turbocharged Variable Geometry and ar-to-air aftercooled
Cylinders/Displacement, cu. in. (L) 6/824 (13.5)
Cylinder Liners Wet sleeve
Fuel tank capacity, US Gal. (L) (Open; Cab) 350 (1325)
Standard 350 (1325)
Optional ---
Underhood muffler ---
Engine family
Performance
Advertised PTO hp (kW) @ Rated rpm N/A
Official PTO hp (kW) @ Rated rpm ---
@ Standard PTO @ Eng rpm ---
Maximum @ Eng rpm ---
Advertised Engine hp (kW) @ Rated speed 460 (338) @ 2100 per ISO 97/68/EC
Max Unballast Drwbr hp (kW) @ Eng rpm ---
Maximum Torque (PTO) @ rpm, lb-ft (Nm) ---
Max Torque Rise (80% rtd spd) @ Eng rpm 38% @ 1600
Maximum Torque Rise % (PTO) @ Eng rpm ---
Fuel Use, U.S. gal./hr & hp hr/gal. at:
PTO @ Rated Eng rpm ---
Standard PTO Speed @ Eng speed ---
Maximum PTO Power @ Eng rpm ---
Maximum Engine Power @ Eng rpm ---
Max Unballasted Drawbar Power @ Eng rpm ---
75% Load, Full Engine rpm (Unballasted) ---
75% Load @ Reduced rpm (Unballasted) ---
Transmission
Std. Transmission; Forward/Reverse 18/6 PowerShift with Efficiency Manager
Opt. Transmission; Forward/Reverse ---
Reverser No
On-the-Go Shifting (Yes/No/Partial) Yes
Clutch; Wet/Dry Wet
Creeper ---
Power Take-Off (PTO)
Standard N/A
Optional N/A
PTO Speeds @ Engine rpm N/A
PTO Actuation N/A
Hydraulics
Type Pressure and flow compensating closed-center
Pump Rated Output, GPM (L/min.) ---
Standard 48 (182)
Optional 75 (284)
Rated Flow @ One SCV, GPM (L/min.) 35 (132), 1/2-in. (12.7-mm) coupler standard, 42 (159), 3/4-in. (19.0-mm) coupler optional
Max Output @ SCV Couplers, GPM (L/min.) ---
Maximum Operating Pressure, psi (kPa) 2900 (20,000)
Maximum Hydraulic Power, hp (kW) ---
Hitch Draft Control Load Sense Type ---
Remote Control Valves Available 4 standard, 6 optional
Hitch Category (SAE Designation) N/A
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. N/A
OECD ---
Standard N/A
Optional N/A
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (SAE) ---
Standard ---
Optional ---
Hitch Lift Cap. lb (kg) @24 in. Bhnd Lift Pt. (ASAE) ---
Standard ---
Optional ---
Sensing type ---
Joystick SCV control ---
Final Drive
Type Inboard planetary,double reduction axle
Differential controls Full-locking electrohydraulic
Availability ---
Front ---
Front & Rear ---
Engage On-the-Go Rear Differential Lock Yes
Axle Type ---
Brakes, Type and Control Hydraulic wet disk, self-adjusting on front and rear axle
Operator Station
Rollover Protective Structure, OOS ---
Rigid - Foldable - Telescopic ---
Platform - Flat/Straddle ---
Gearshift Location - Console/Floor ---
Cab ---
Doors 1 - Left Hand
Platform - Flat/Straddle ---
dB(A) Rating ---
Seat Suspension System Air (standard), Active (optional)
2WD Dimensions
Wheelbase, in. (mm) ---
Front Tread Range, in. (mm) ---
Rear Tread Range, in. (mm) ---
Minimum Rear Tread Setting, in. (mm) ---
Front Axle Clearance, in. (mm) ---
Turning Radius w/Brakes, ft (m) ---
Turning Radius w/o Brakes, ft (m) ---
Unballasted Operating Weight, lb (kg) ---
Approx. Ship Wgt, lb (kg) Open; Cab ---
MFWD Dimensions
Wheelbase, in. (mm) ---
Front Tread Range, in. (mm) ---
Front Axle Clearance, in. (mm) ---
Turning Radius w/Brakes, ft (m) ---
Turning Radius w/o Brakes, ft (m) ---
Limited Slip Differential ---
Unballasted Operating Weight, lb (kg) ---
Approx. Ship Wgt, lb (kg) Open; Cab ---
4WD Dimensions
Wheelbase, in. (mm) 137.8 (3500)
Wheel Tread, Min. to Max. in. (mm) 67-145 (1689-3691)
Turning Radius w/o Brakes, ft (m) 14.6 (4.45)
Nebraska Test Unballasted w/Duals, lb (kg) ---
Unballasted Weight, lb (kg) 35,026 (15,888)
Standard Tires
2WD ---
Front ---
Rear ---
MFWD ---
Front ---
Rear ---
4WD 710/70R38 (Group 47)
Track widths ---
Miscellaneous
Country of Manufacture Waterloo, Iowa, USA
Ballasting Restrictions, lb (kg) Lesser of 54,000 (24,494) or Tire Capacity
*Notes Updated - 08/30/2011
