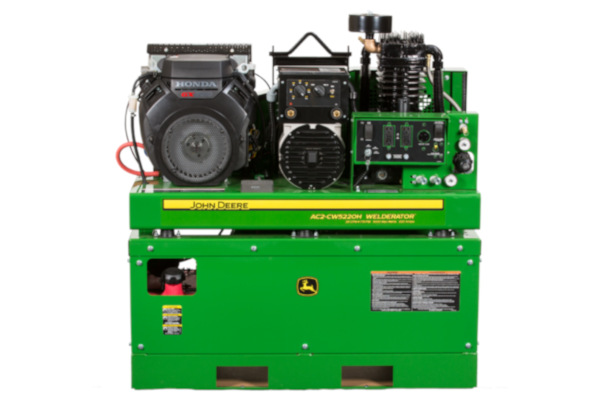

John Deere AC2-CW5220H

Double tap to zoom



Features

  • 688cc Honda GX Engine
  • 29.0 CFM @ 175 PSI
  • Industrial Honda V-twin GX engine with electric start; battery and cables not included
  • 4500-watt continuous rating
  • 41.5/20.8 max. amps (120V/240V)
  • 37.5/18.8 cont. amps (120V/240V)
  • 1⁄4-in. base plate to reduce vibration
  • 10-gallon auxiliary fuel tank
  • Removable front panel
  • Fork truck accessible

Specifications

Model/Part No. AC2-CW5220H
Engine
Power Source Gasoline
Honda OHV 688cc
Rated Speed 3,600 RPM
Compressor
CFM @ 175 PSI 29.0 (Equipped with 150-PSI maximum rated regulator)
Generator
Max. AC Output 5000 watts
Rated AC Output 4500 watts
Welder
Duty Cycle (10 min. run time) 220A @ 40%, 190A @ 60%, 150A @ 100%
DC Voltage 50-220A working range
Miscellaneous
Measurements 47"L x 24"W x 50"H
Net Weight 803 lbs.
