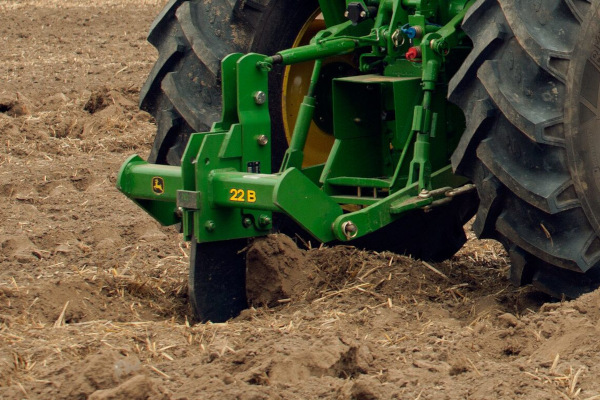

John Deere 22B Integral Ripper

Double tap to zoom



Features

Economical single parabolic standard ripper promotes root growth

A single parabolic standard ripper provides an economical means of shattering hardpan soil by exploding the soil upward to promote root growth:

  • Curved standard is less likely to slice through marginally moist soils than a straight standard
  • Mole ball can be attached to the standard to help drain wet soils by leaving a small tunnel under the soil
  • V-knife can be attached to the standard to effectively cut the root systems
  • Improves water percolation into the subsoil zone



Two sizes of standards are available:

  • 25 mm x 686 mm (1 in. x 27 in.)
    • Maximum working depth of 406 mm (16 in.)
  • 32 mm x 838 mm (1.25 in. x 33 in.)
    • Maximum working depth of 559 mm (22 in.)

Both standards are protected for up to 6364 kg (14,000 lb) of operating force by a 16-mm (5/8-in.) shear bolt.

Attaches to 3-point hitch

The 22B In-Line Ripper attaches to the tractor's 3-point hitch:

  • 25-mm x 686-mm (1-in. x 27-in.) standard model is compatible with Category 1, 3-point hitch tractors.
  • 32 mm x 838 mm (1.25 in. x 33-in.) standard model is compatible with Category 2 or 2/3N tractors with or without Quik-Coupler
    • 16.9-30 or larger rear tractor tires are recommended

Specifications

Key Specs

Operating depth Maximum
406 to 559 mm
16 to 22 in.
Horsepower per standard With 3-point hitch: 53 to 165 engine kW
39.5 to 123 engine hp

Tool configuration

Type V-ripper
Option 1 Integral ripper

Operating depth

Maximum 406 to 559 mm
16 to 22 in.

Horsepower required

Horsepower per standard With 3-point hitch: 53 to 165 engine kW
39.5 to 123 engine hp

Hitch

Three-point hitch requirements Category 1, 2, or 3/N without Quik-Coupler for standard: 686 mm
27 in.
Category 2 or 2/3N with or without Quik-Coupler for standard: 838 mm
33 in.
16.9-30 or larger rear tractor tires are recommended

Standard options

Option 1
Standard type
Parabolic
Standard: 32x686 mm
1.25x27 in.
Penetration: 406 mm
16 in.
Option 2
Standard type
Parabolic
Optional: 32x838 mm
1.25x33 in.
Penetration: 559 mm
22 in.

Coulters

Blades High-carbon steel: 76x10 mm
3x0.375 in.
Long: 610 mm
24 in.
