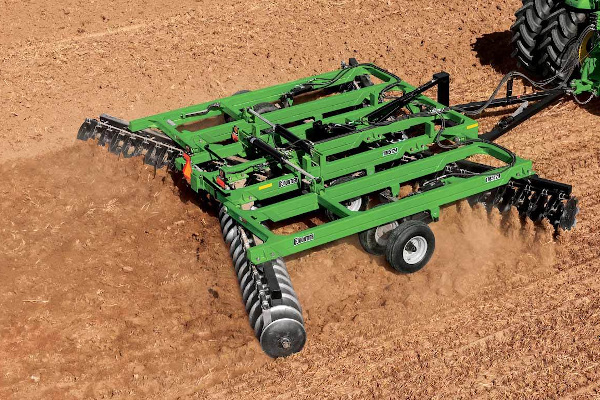

John Deere TM5129

Double tap to zoom



Features

  • Dual wheels provide consistent disking depth
  • End washers and wrenches keep gang shaft end nut tight
  • Hydraulic wing control
  • Oil-bath disk gang bearings provide extended wear life
  • Overlapping front gangs eliminate need for middle breaker
  • Standard pintle hitch ensures a solid pull of disk
  • Two-blade taper creates level soil surface
  • Transport locks provide secure transport
  • Transport width
  • Two separate control arms create consistent performance

Specifications

Transport

Width 4.2 m
13.67 ft, in.
Ground clearance with base blades 20.3 cm
8 in.
Wheel hub bearings Dual Tapered Roller Bearings
Height 4 m
13.2 ft
Length 8.5 m
28 ft

Working

Approximate working width 7.2 m
23.5 ft, in.
Maximum penetration 22.9 cm
9 in.

Weight

Net 7842.6 kg
17290 lb
Weight per disk blade 145.1 kg
320 lb

Tractor requirements

Recommended drawbar hp range 164.1+ kW
220+ hp

Frame

Type Tandem double offset
Duty General Purpose
Tube size 15.2x10.2x0.95 cm
6x4x0.375 in.

Hitch

Front hitch type Spade
Bolt-on rear hitch

Disk blades

Spacing 26.7 cm
10.5 in.
Quantity 58
Type Notched (front) Notched (rear)
Standard
Smooth (front) Smooth (rear)
Optional
Notched (front) Smooth (rear)
Optional
Blade concavity Standard: high
Optional: low

Available blade sizes

Blade option one 660x7.9 mm
26x0.312 in.
Blade option two 711x7.9 mm
28x0.312 in.

Disk gangs

Front angle 3 Positions
Rear angle 3 Positions
Axle size 4.1 cm
1.625 in.
or 5.4 cm
2.125 in.
Axle material Round heat treated alloy steel, threaded on both ends
Bearing type Oil bath tapered roller
Bearing wear plates Standard
Bearing standards Welded, reinforced
Scrapers Adjustable

Lighting and safety

Markings SMV
Safety tow chain Yes
Lights Yes

Tires

Type Eight implement
Size 11L x 15 in. 8 ply
Wheel hub type 8 Bolt

Set-up time

Labor hours 4 - 6 for two people

Warranty

Time period 1 year

Additional information

Date collected
