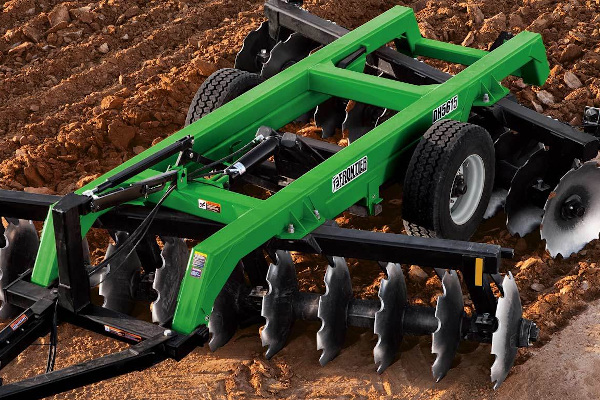

John Deere DH5612
Frontier Heavy Offset Disks DH5612
Share This Product:
Features
- Adjustable disk blade scrapers increase productivity
- End washers and wrenches keep gang shaft end nut tight
- Transport locks secure disk wings
- Two separate control arms create consistent performance
- Oil bath tapered roller bearings minimize maintenance
Specifications
Transport
| Width | 3.4 m 11 ft |
| Wheel hub bearings | Dual tapered roller bearings |
Working
| Approximate working width | 3 m 10 ft |
Weight
| Net | 6,304.9 kg 13,900 lb |
| Weight per disk blade | 393.7 kg 868 lb |
Tractor requirements
| Recommended drawbar hp range | 167.8 kW 225+ hp |
Frame
| Type | Single offset rigid |
| Duty | Heavy |
| Tube size | 20.3x20.3x1.3 cm 8x8x0.5 in. |
Hitch
| Front hitch type | Pintle |
Disk blades
| Spacing | 43.2 cm 17 in. |
| Quantity | 16 |
| Type | Notched (front) Notched (rear) Standard |
Available blade sizes
| Blade option one | 914x12.7 mm 36x0.5 in. |
Disk gangs
| Front angle | 3 positions |
| Rear angle | 3 positions |
| Axle size | 6.4 cm 2.5 in. |
| Axle material | Round heat treated alloy steel threaded on both ends |
| Bearing type | Oil bath tapered roller |
| Bearing wear plates | Standard |
| Bearing standards | Welded, reinforced |
| Scrapers | Adjustable |
Lighting and safety
| Markings | SMV |
| Safety tow chain | Yes |
| Lights | Yes |
Tires
| Type | 2 - Radial Industrial |
| Size | 385/65R22.5 |
| Wheel hub type | 5-spoke Dayton hubs |
Set-up time
| Labor hours | For two people: 2-3 hours |
Warranty
| Time period | 1 year |
